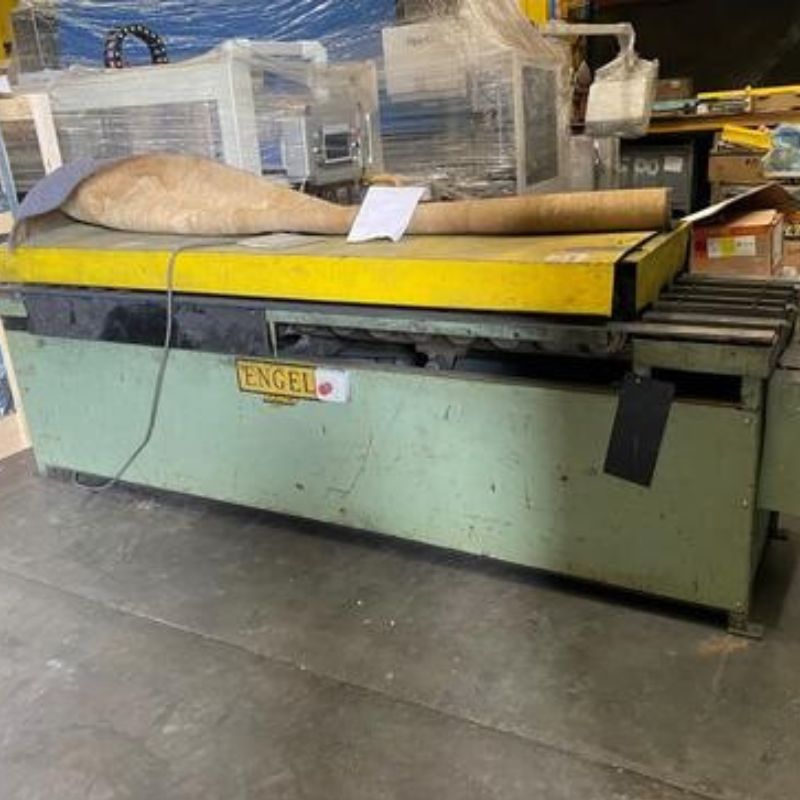

Used Engel TDF 16 Station Rollformer for HVAC

Available Now – $18000+GST

Includes Clip Rolls in centre

• Sixteen (16) Forming Stations for superior quality.
• 18 – 26 Ga. Material Capacity – no adjustments necessary between gauges
• Feed rate approx. 22m/min
• Independent adjustment at each forming station with pre-set spring tension
• Large, heavy-duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine.
• Slide out shaft design allows for easy maintenance.
• Heavy duty 1-1/4” diameter stress proof roller shafts
• Woodruff shaft keys for added strength and precise alignment.
• Hardened infeed guides reduce wear from plasma cut edge.
• 7.5 HP Motor coupled to industrial oil bath gear reducer for quiet longevity.
