Available Immediately



If you are looking to reduce material costs and scrap, this Cut to Length and Width and Stacking System could be the perfect solution. Made in Denmark, the Cidan Turbo Cutting Line (Model 12/2.00) has a speed of 30m/min and weighs 3030kg.

How can this Used Cut to Length Line help your business?

Contact us to discuss your business’s needs and to learn how the Cidan Turbo Cutting Line can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Unique Features

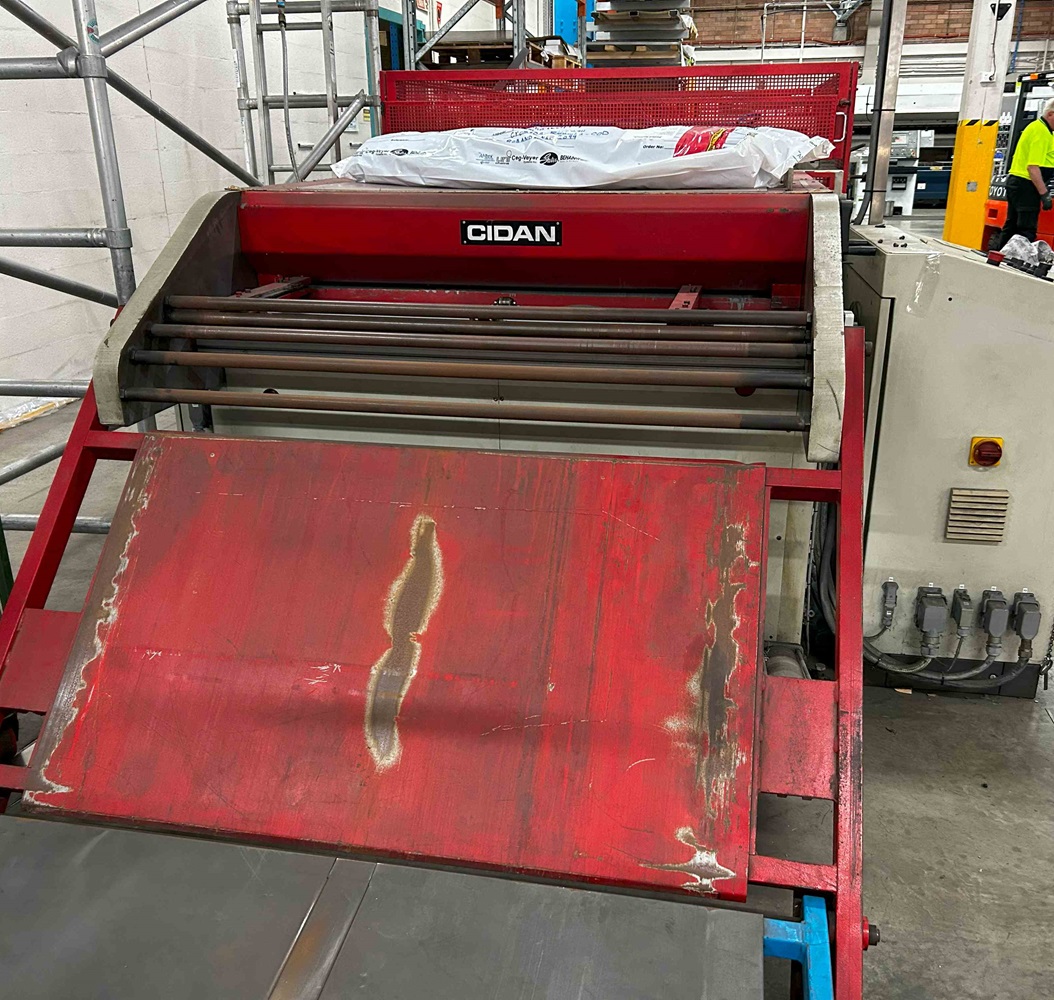

• Straightening unit with 7 Rolls. Achievable straightness in accordance with DIN 1541

• Feeding unit with 2 sets of feeding rolls, each with one steel and one rubber-coated roll. One before and one after the straightening rolls.

• Slitting unit with two pairs of slitting blades (never used).

• The cutting unit is a mechanical shear.

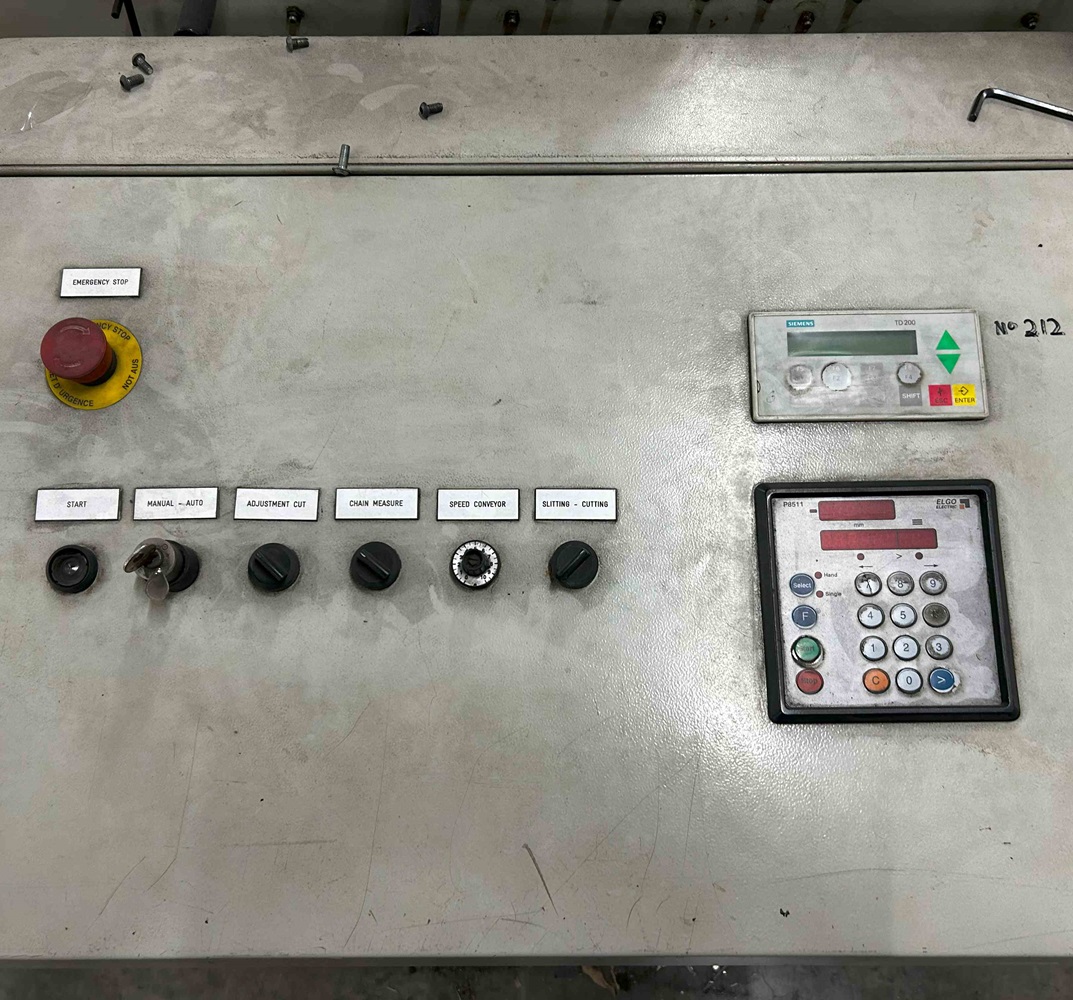

• Control is German Elgo NC

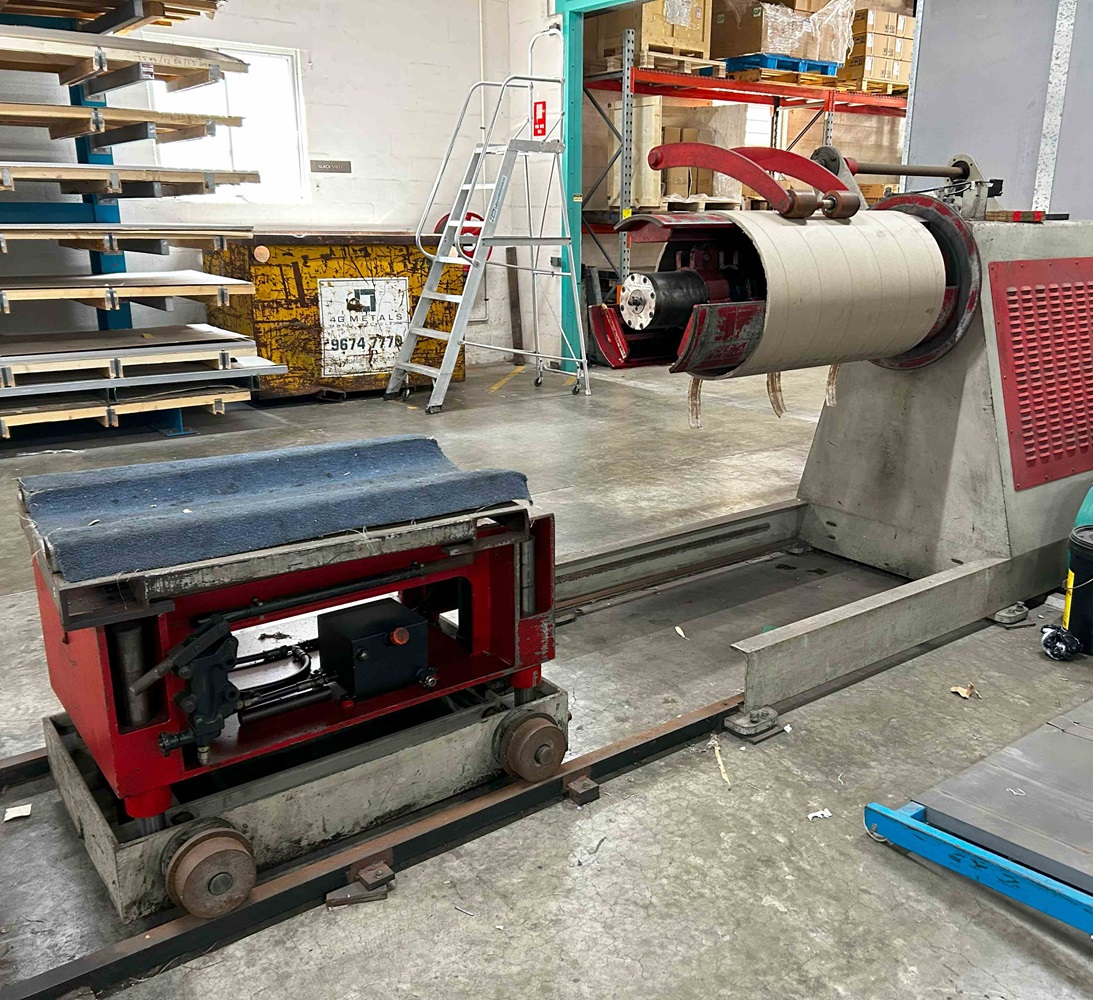

• Decoiler Cidan Model DCO x 5000kg. Cantilever style with motorised mandrel expansion and pneumatic pressure arm to prevent coil unspooling. It has an ultrasound sensor to control the feed rate.

• Coil Wagon Cidan 5000kg with rails.

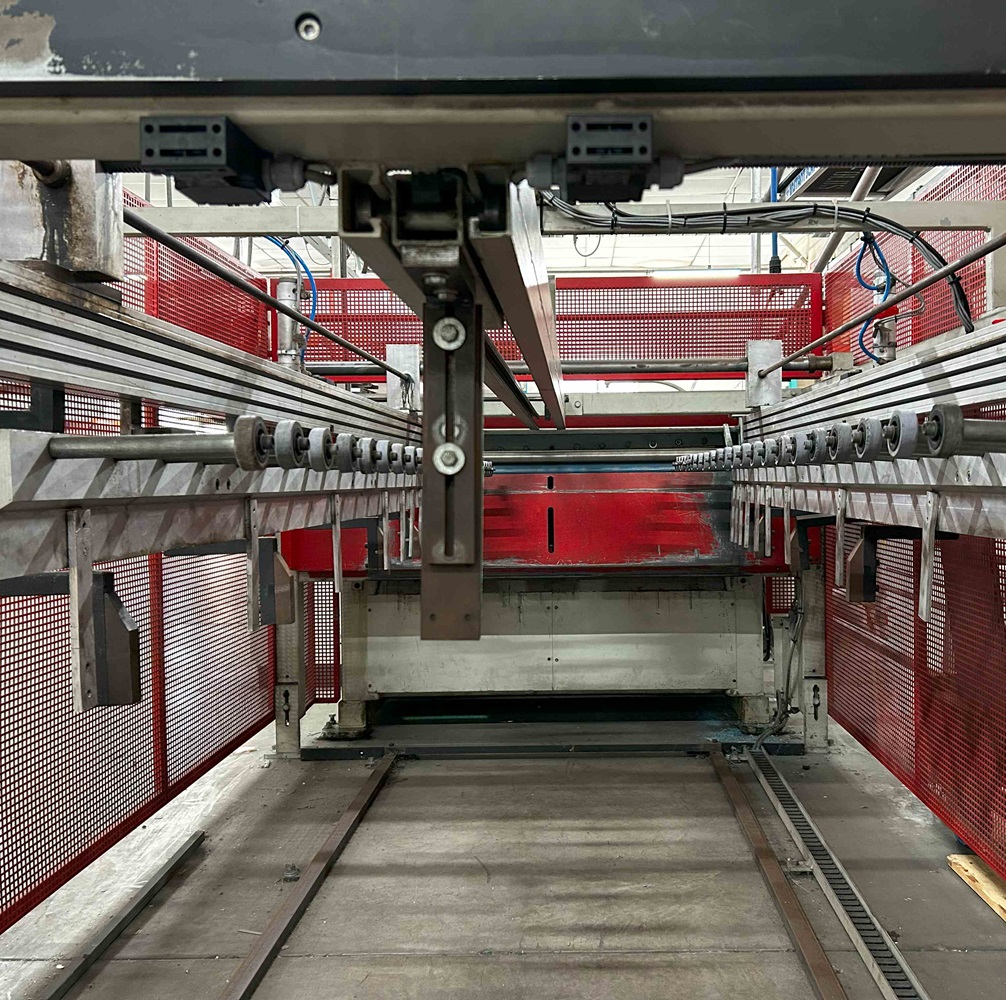

• Stacking Unit Cidan, Bombay door style x 3000mm with height adjustable table and unloading trolley.


VIDEO | Click here to see the Cidan Cut to length Line in action.
