Section Roller for bending Sheet Metal and Steel Fabrication

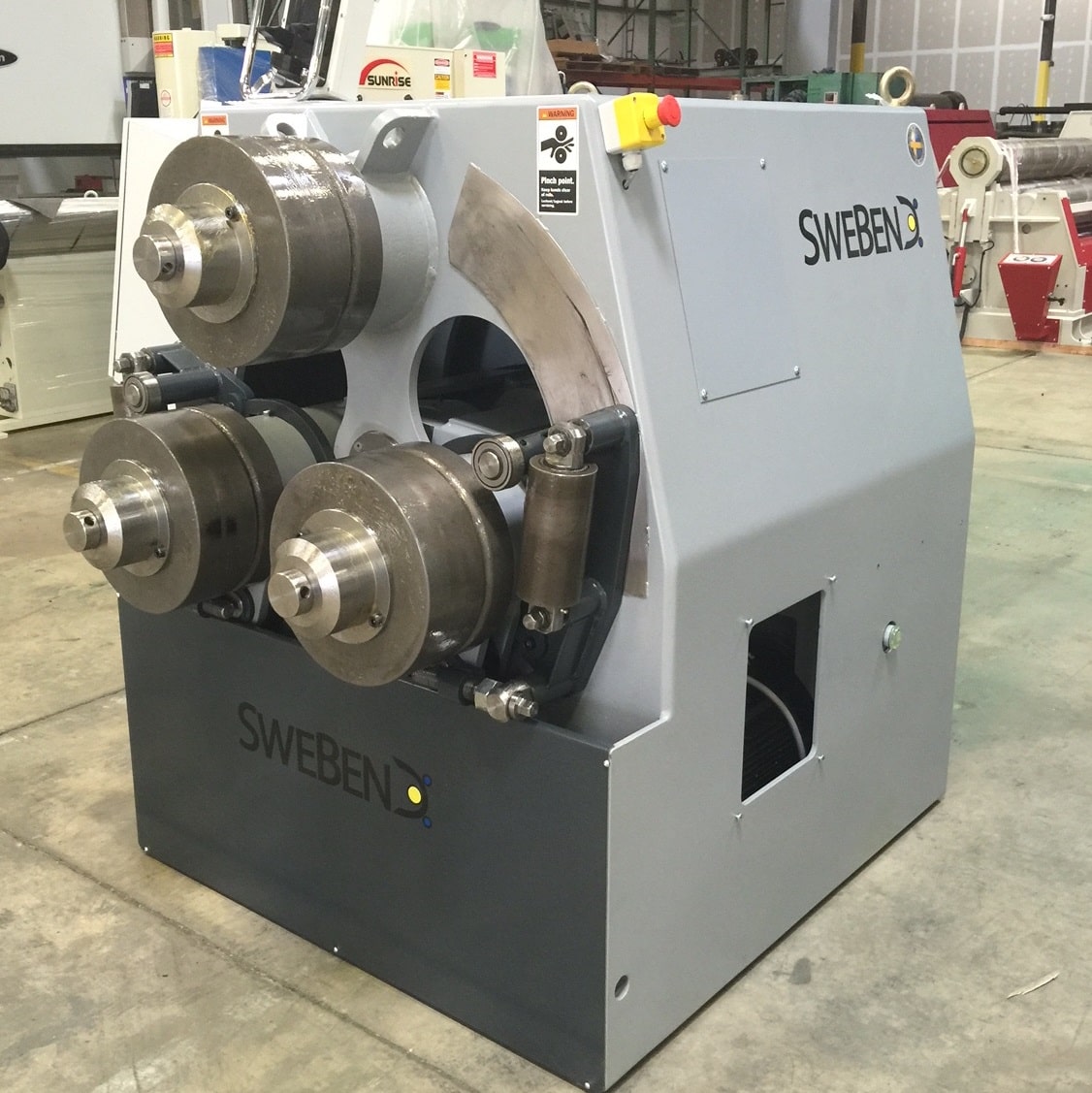

Swebend Section Roller - SB3B -105 for steel fabricator

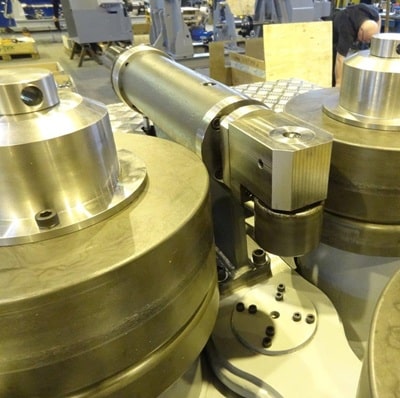

Swebend Section Roller Push Roll
Section Rolling Bending Machine for Sheet Metal by Swebend

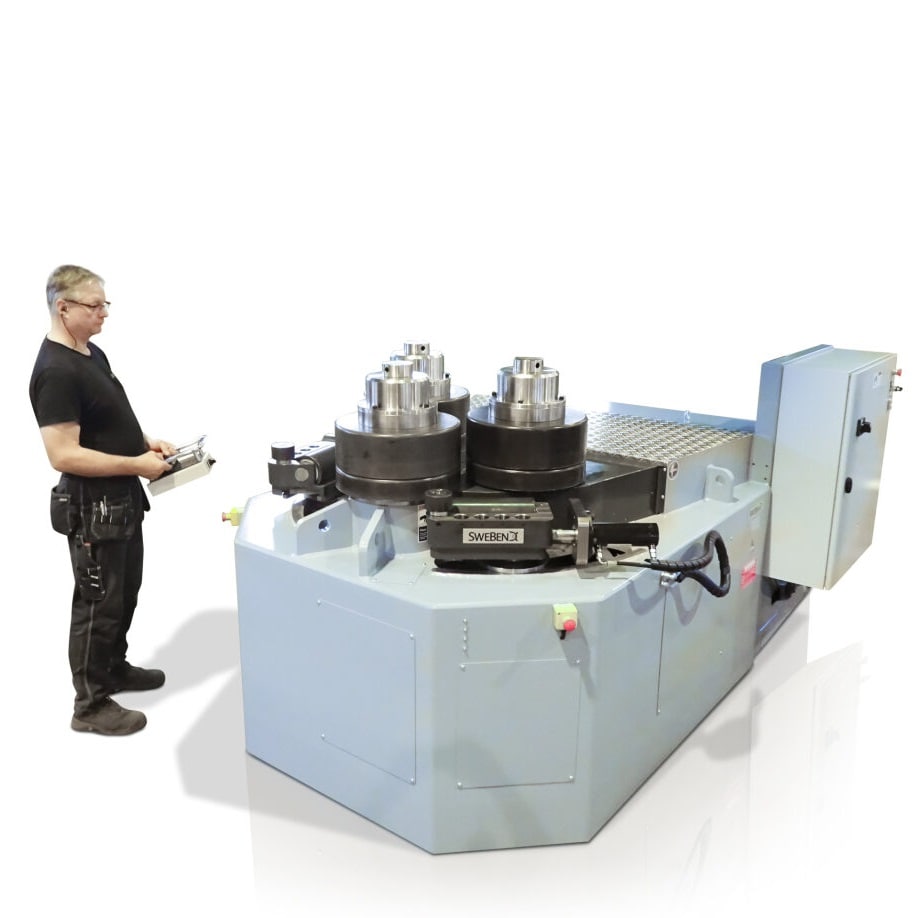

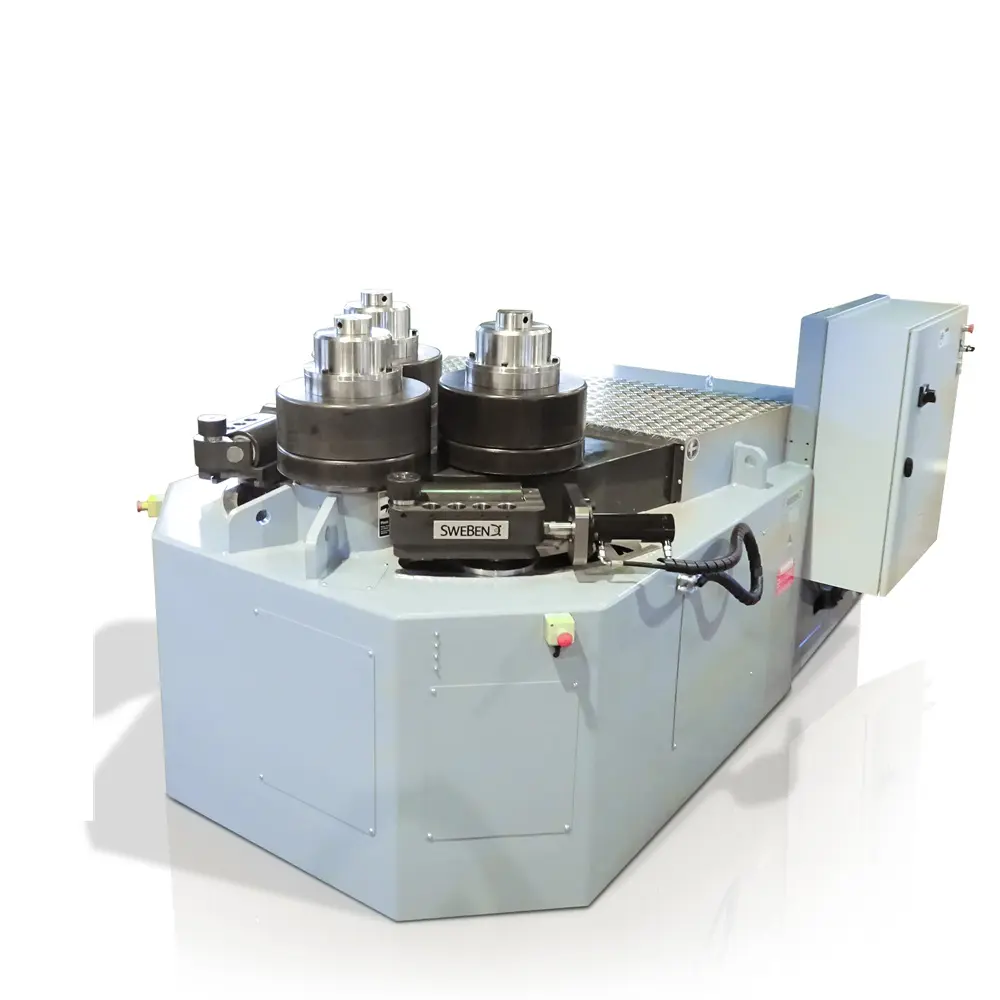

Swebend 3 Roll Section Roller

Seven Different Models Available from 7cm³ up to 600cm³



The Swedish made Swebend 3 Roll Section Roller is sturdy in its design and known to be the most powerful section roller compared to other machines on the market.

Benefits of Swebend Section Rollers:

• Heavily proportioned stress-relieved main frame and components. This helps increase stiffness and reduce flexing of the machine, insuring optimal bending results
• Largest roll shafts of any comparably sized machine. This helps minimize shaft deflection even under maximum load, allowing you to produce a better rolled product.
• More drive torque than any comparably sized machine.
• Most powerful bending forces generated by the two lower (rear) rolls. Together with the highest drive torque, productivity is increased and your rolling jobs are completed faster.
• Only genuine SKF bearings used throughout the machine.
• World famous Swedish steel used for all roll tooling.

How can the Swebend Section Roller help your business?

Contact us to discuss your business’s needs and to learn how the Swebend SB3 can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Technical Information

Unique Features

• Three roll double pinch (pinch/pyramid) design allowing prebending in both directions

• Highest available lower (rear) roll power (=bending power).

• Lower rolls hydraulically adjustable.

• Tiltable guide rolls, which move together with the main bending rolls, enable better results when
rolling asymetrical sections like angle iron with leg-out or leg-in. Includes leg-in attachment. (Dolly rolls)

• Planetary gearbox on all machine sizes ensures maximum drive torque. Other manufacturers may use worm gear boxes which produce less drive torque.

• Wireless Bluetooth control unit to control all machine functions. (excl. SB3B-55,65,75)

• Combined execution, permitting operation with either vertical or horizontal roll shafts.Standard up to -105 & optional on larger models

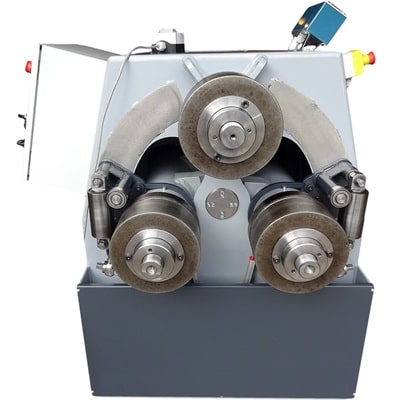

• Mechanical single speed drive on Models SB3B-55, SB3B-65 and SB3B-75.

• Hydraulic variable speed drive on SB3-85 and larger models

• All three rolls driven at all times, regardless of the position of the bending rolls. Speed compensation of the three rolls on all models

• Digital readouts displaying the position of the two adjustable rolls. Induction hardened roll tooling made only from high-quality Swedish steel for rolling angles leg-out and leg-in, T-bar, flat bar on edge and on flat, square bar and small round bar.

• Only SKF bearings used in all journals.

See the Swebend SB3 Section Roller in action
