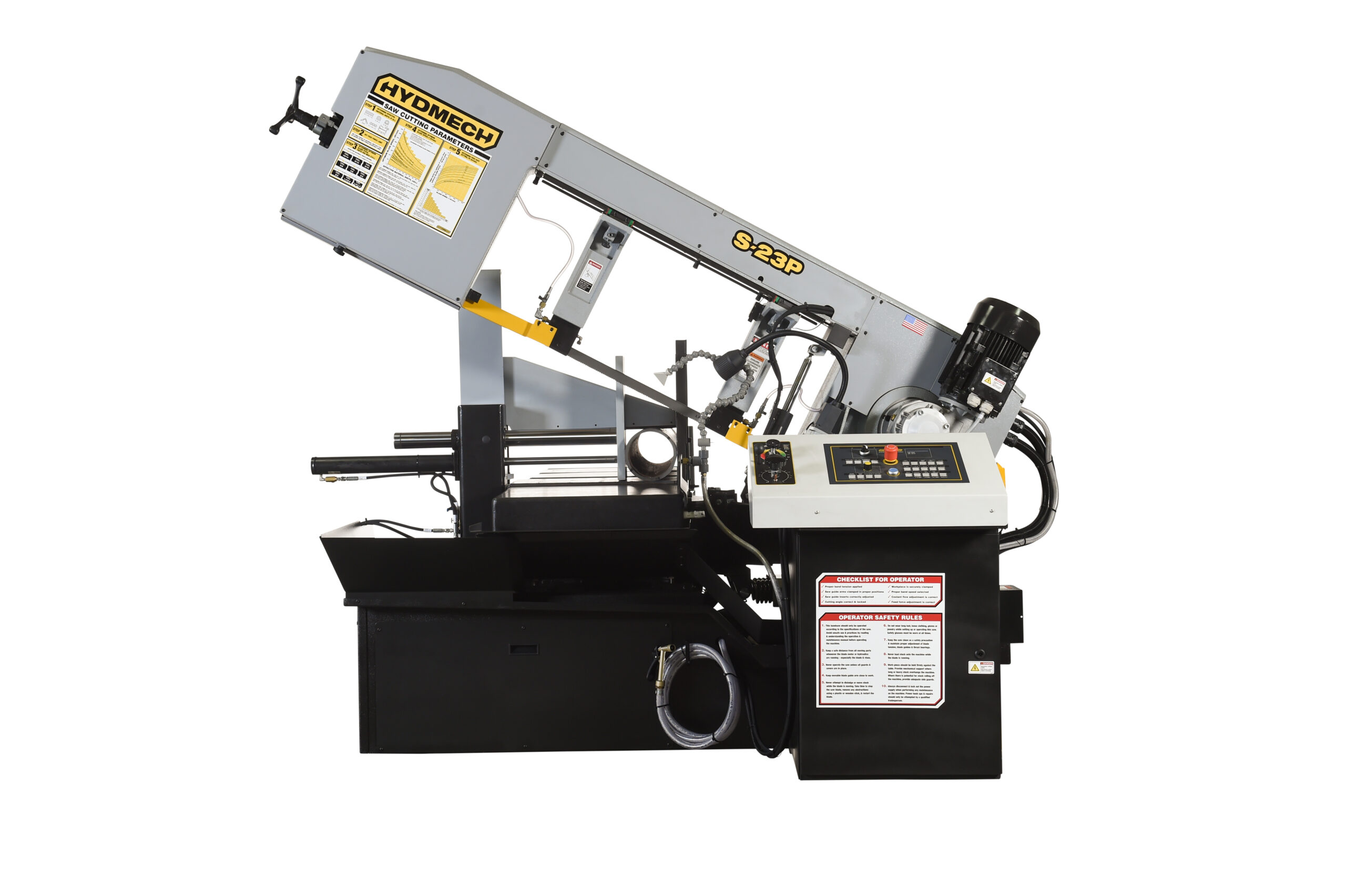

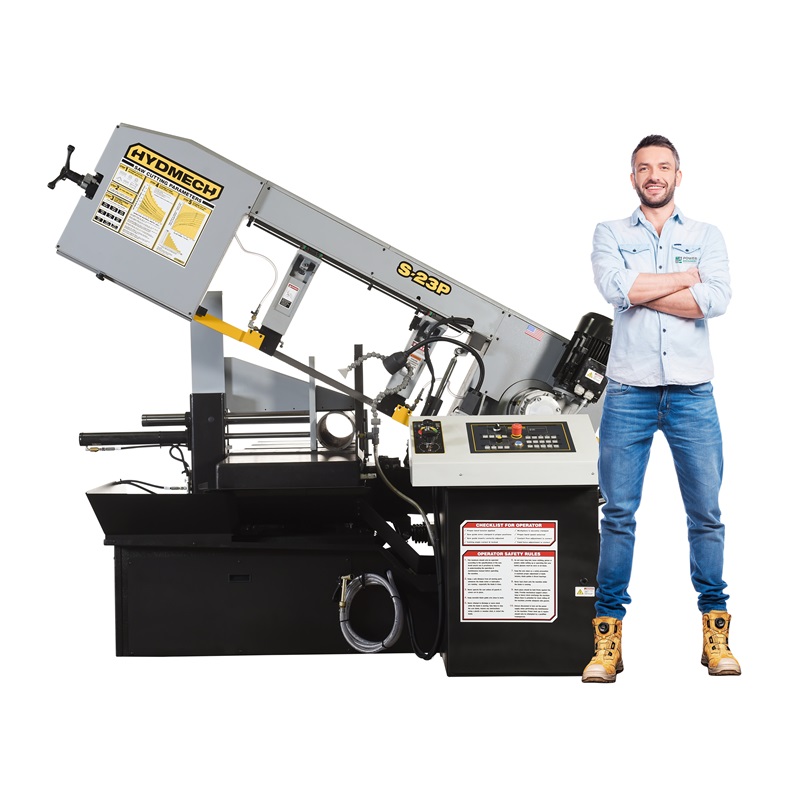

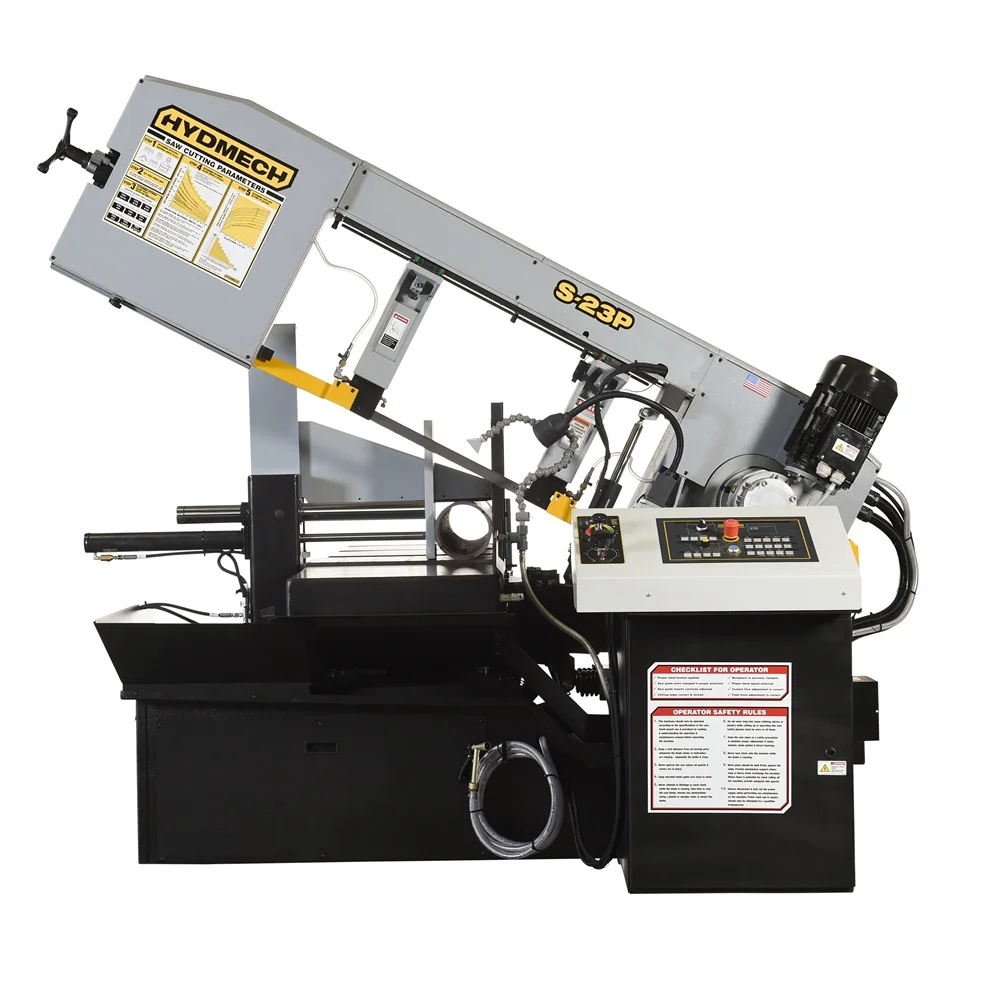

Hydmech S23P Semi-Automatic Pivot Bandsaw

Capacity – 406 x 508mm



The Hydmech S23P is a semi automatic pivot bandsaw is American made and provides exceptional mitre cutting capability for light to medium duty applications giving you maximum productivity.

Operating in semi-automatic mode, the bandsaw is contolled by an LED readout for blade speed, blade tension, parts counter, head height adjustment, laser light, amperage draw of blade motor, cut duration, head position, and overall machine run time.

This semi automatic pivot bandsaw machine offers direct down feed which enables easy adjustment of both head feed rate and cutting pressure, which means better cutting rates and longer tool life.

Mitring from 90° to 60°, and with a maximum capacity of 406 x 508mm at 90°, the Hydmech S23 P is built solidly to give you maximum productivity.

This model also features a 5.5 HP motor and 32mm blade and blade speed of 22-106 m/min.

How can the S23P Semi Automatic Pivot Bandsaw help your business?

Contact us to discuss your business’s needs and to learn how the S23P can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Unique Features

• Semi-automatic operator PLC control

• Easy swing, heavy-duty, cast iron saw head that can swing up to 60 degrees in one direction

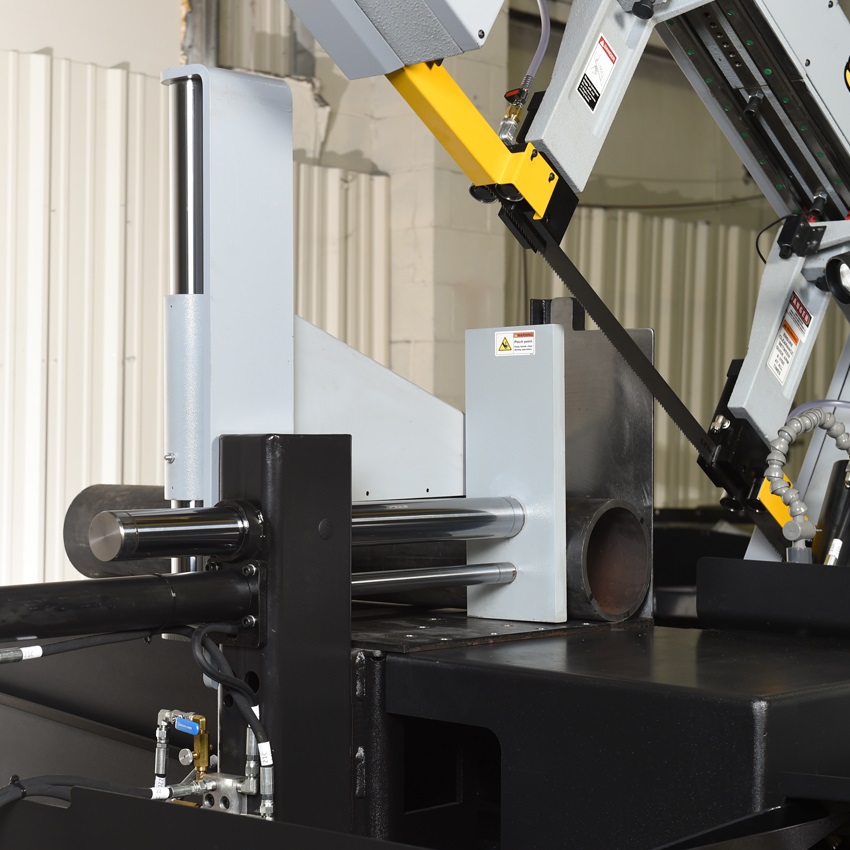

• Full capacity, full stroking hydraulic material vice

• 6.5 HP VFD True direct blade drive – no belts/pulleys

• On-demand hydraulics save energy

• 488mm out feed table and 1092 mm infeed table

• Blade breakage switch

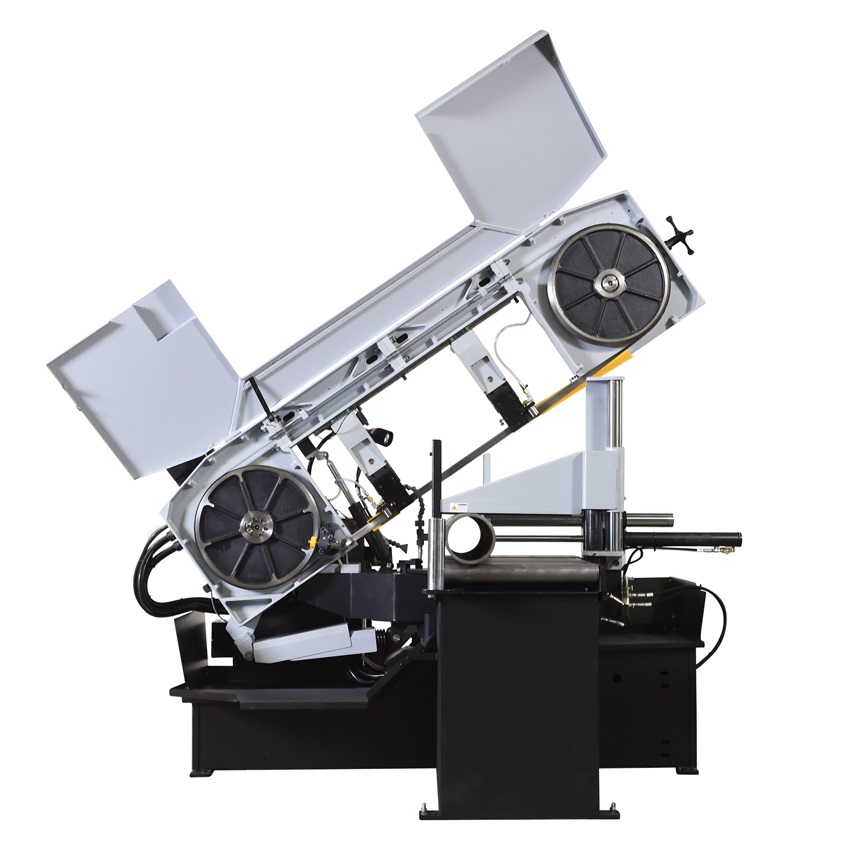

• Cast iron band wheels

• Replaceable blade brush

• Robust steel base

• Easy to read angle scale with angle locking mechanism

• Cast iron blade guide arms. Idler side guide arm is adjustable and supported by linear rail.

• Easy access electrical panel

• Hydraulic positive down feed sawing head with infinite down feed adjustments

• Mechanical band tensioning with digital readout

• Pre-set replaceable carbide guide inserts

• Safety door interlocks

• Flood coolant with wash down hose

• Laser light

• Work light

• Variable vice pressure

See the Hydmech S23 P in action
