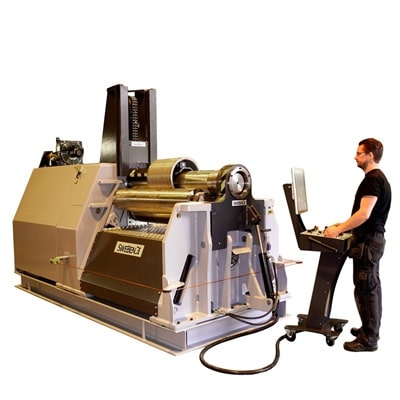

Plate Rolling Machine PB4-12-4 CNC

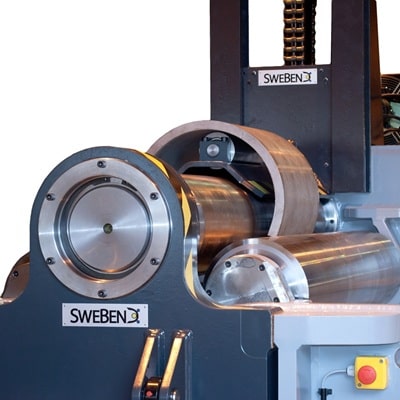

Plate Rolling Machine Model PB4-12-4 CNC

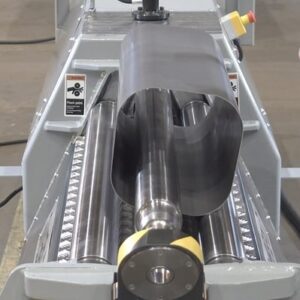

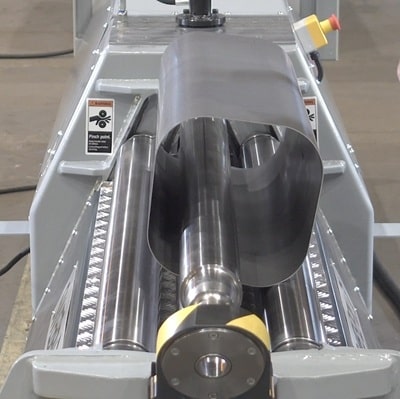

Plate Rolling Machine 4 Roll Model PB4-4-4 in Action

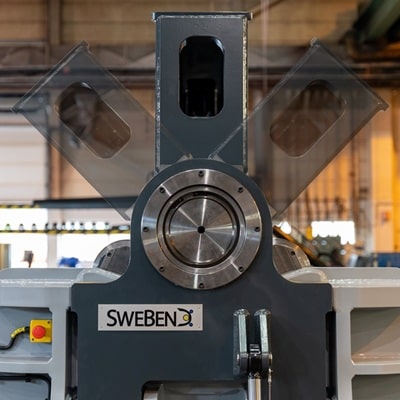

Plate Rolling Machine 4 Roll Swebend Model PB4X-11-14

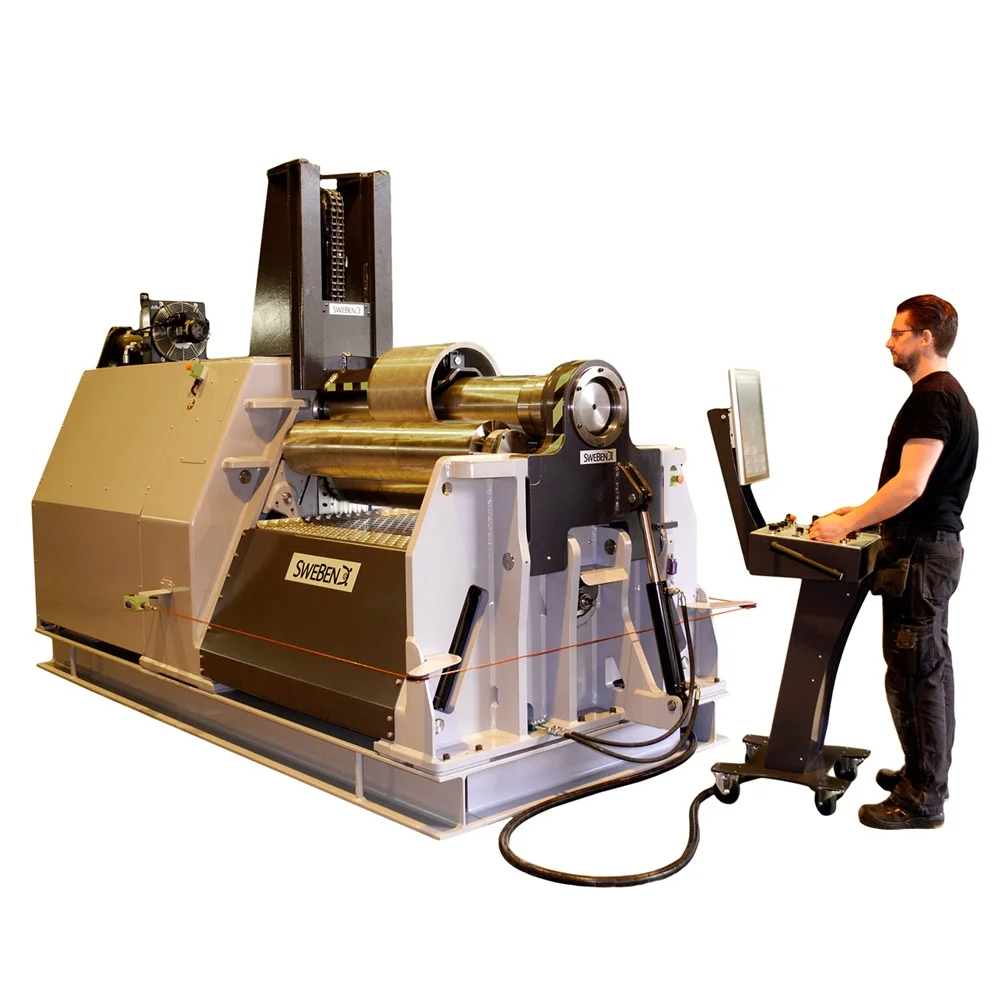

Swebend 4 Roll Plate Rolling Machine

Range of models depending on requirements



Ideal for repetitive production, the 4 Roll Plate Rolling machine is made by quality Swedish manufacturer, Swebend.

The double pinching system allows for optimal results in just one pass, which results in reduced production time and more savings.

The 4 Roll Plate Rolling Machine guarantees the highest pre-bending power and drive torque compared to all other similar sized machines on the market.



Features of the 4 Roll Plate Rolling Machine:
  • 12 different standard size ranges, from PB4-4 with top roll diameter 102mm up tp PB4-28 with top roll diameter 711mm
  • Operation: hydraulic
  • Number of rolls: 4 Rolls
  • Optional Seven CNC Series
  • Sheet thickness: Minimum: 1 min to Maximum: 200 mm
  • Sheet Size: Minimum 1000 mm to Maximum: 12000 mm

How can this Plate Rolling Machine help your business?

Contact us to discuss your business’s needs and to learn how the Swebend PB4 can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Technical Information

Unique Features

• Double-pinch pyramid design, enabling pre-bend at both ends of the plate

•  Razor sharp electronic control of roll parallelism (0.1mm tolerance)

•  Hardened & ground rolls with extremely high finish.

•  Wireless control unit with joysticks and display

•  Four digital readouts (both roll ends)

•  Easy pre-bending and rolling in either direction

•  Rotational speed variation

•  Hydraulic opening mechanism for unloading finished roll

•  Tiltable bending rolls

•  4 hydraulic powered rolls

•  SKF bearings only

•  Top quality electrical & hydraulic components from the worlds best suppliers.

•  Emergency stop button

•  CE-Certification

See the Swebend PB4 Plate Rolling Machine in action
