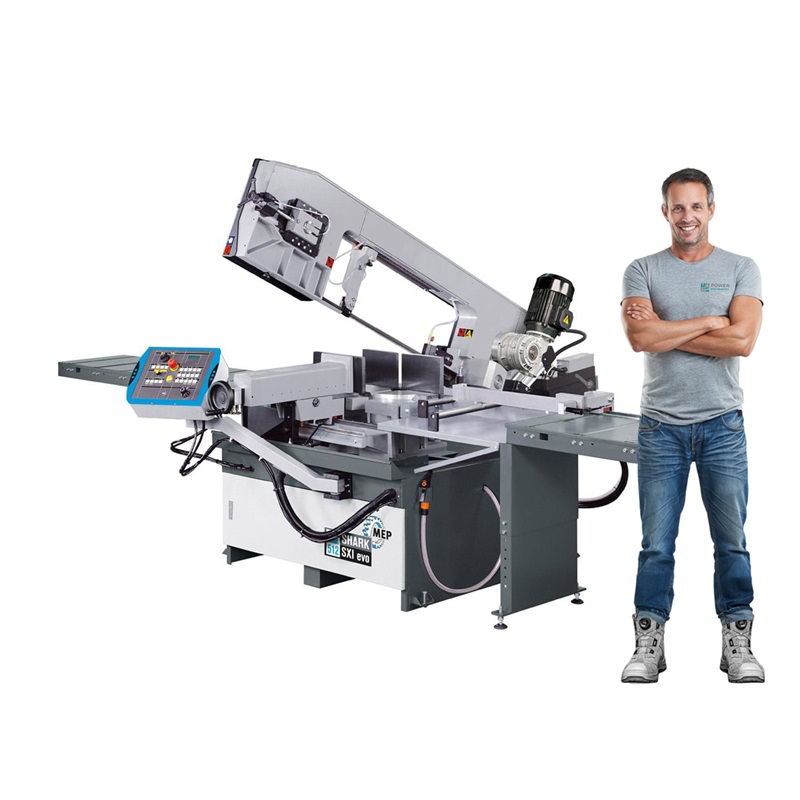

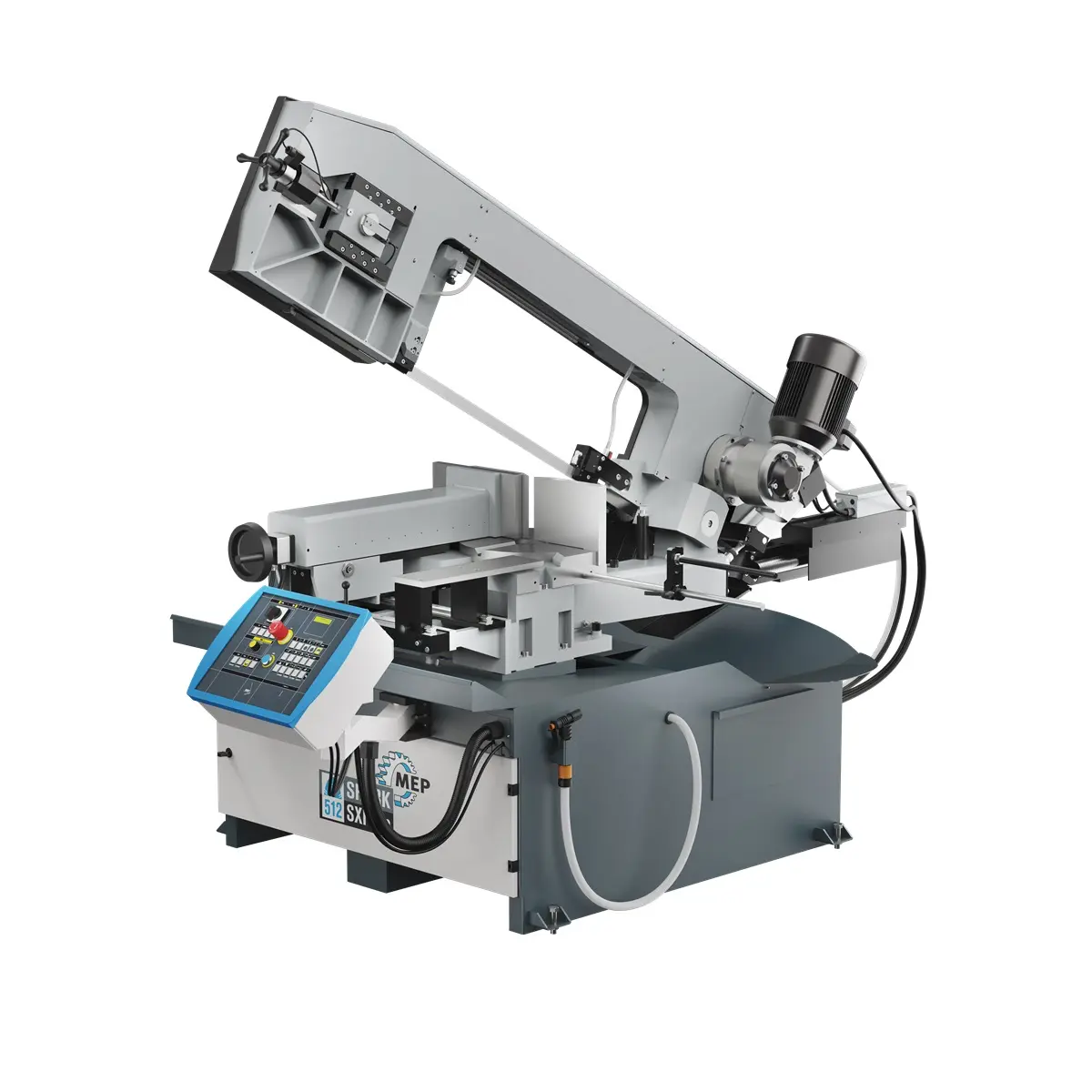

MEP Shark 512SXI Evo Semi-Automatic Metal Bandsaw

Capacity – 280 x 220mm

Manufactured in Italy, the MEP Shark 512 SXI Evo is a hydraulic Semi-Automatic metal bandsaw built in a cast iron construction to cut from 60° right to 60° left with two modes of operation; Semi-Automatic and Cycle Down Up.

Semi-Automatic mode – The operator programs top and bottom position and presses the start button. The vice closes, cut commences hydraulically. After the cut the blade stops, vice opens, and bow returns to the programmed top of stroke position.

Cycle Down Up mode – The saw stops at the bottom of stroke without releasing the material until you press unclamp.

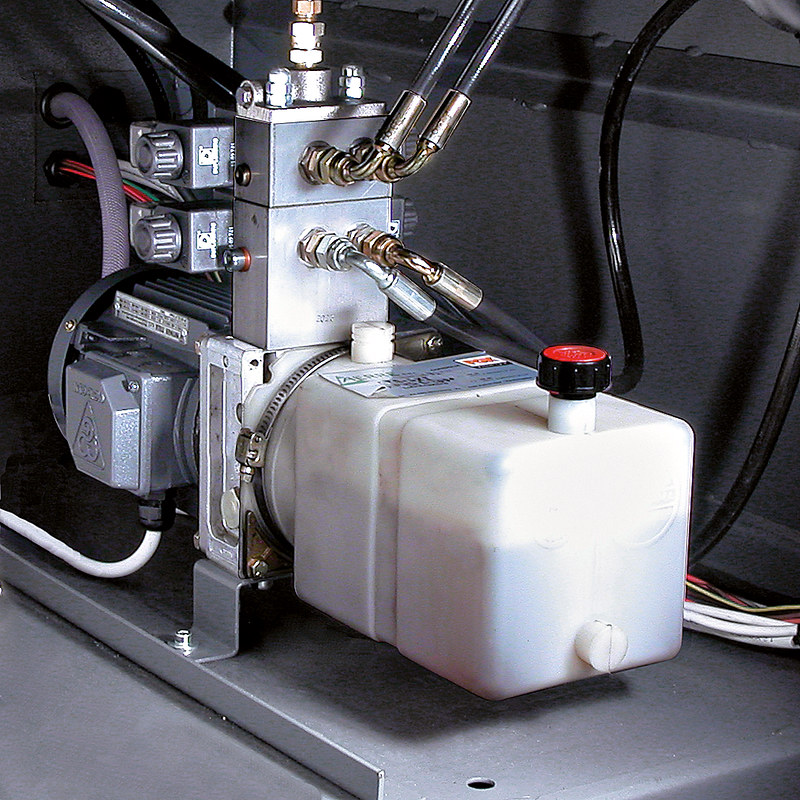

As well as programming top and bottom of the stroke, the centralised control panel provides all information required by the operator, including alarms, diagnostics, pieces cut, cutting time and blade tension. The hydraulic system is the latest generation in terms of power efficiency, switching off when not in use for greater energy savings.

How can the 512SXI Metal Bandsaw help your business?

Contact us to discuss your business’s needs and to learn how the 512SXI Evo can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Unique Features

• Mitring is quick and easy to 60 degrees both ways. No tools are required.

• The cast iron construction provides an incredibly stable structure that ensures precise square cuts and long blade life.

• Direct drive gearbox drive ensures maximum power and efficiency is delivered to the cut.

• The SXI is a true hydraulic semi-automatic saw. Push the start button, and it clamps, cuts, motor stops, returns up and unclamps. The top and bottom of the stroke are programmed from the console. No adjustment of microswitches.

• The feed rate is regulated hydraulically by the precision potentiometer.

• Vice with a fast-clamping device so you can lock in repetitive jobs fast.

• Hydraulic gauge to visualize band tension, including a safety stop if the blade breaks.

• Low voltage electric pump for lubrication and cooling.

• Wire chip brush to keep the blade clean and maximise blade life.

• 34mm wide blade and 4.0kW motor ensure fast accurate cutting.

• Jobbing work is easy with the Laser Line, and Worklight included.

• Keep your workshop clean and increase blade life with the Mist Lubrication System included.

This is an investment in precision and durability. It is not the cheapest saw, but undoubtedly it is the best value in this capacity range. The build quality, cast iron construction, and overnight delivery of any blades or parts ensures you will get years of reliable, fast, and straight cutting.
