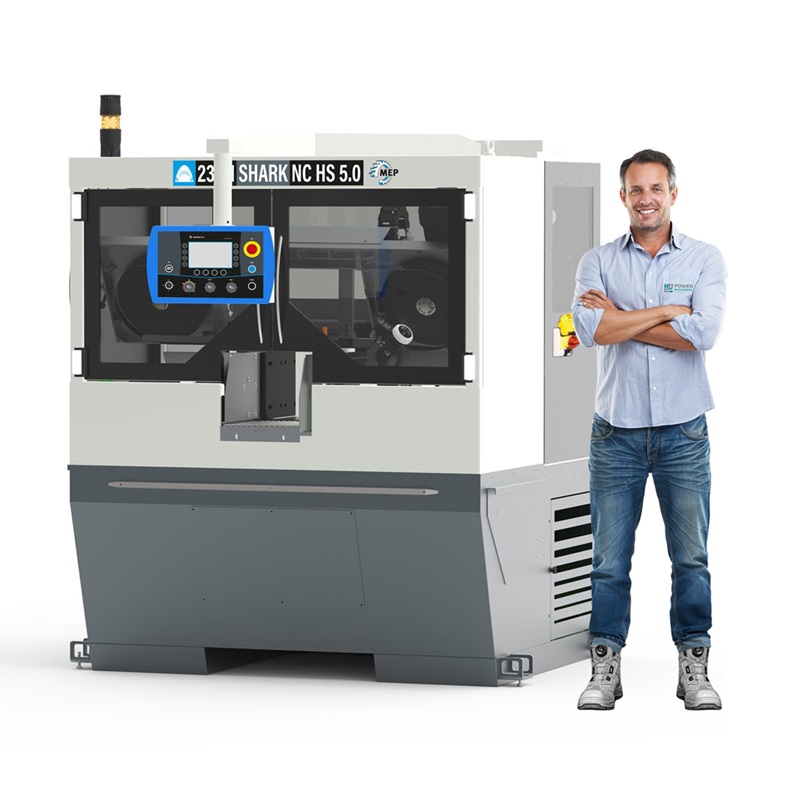

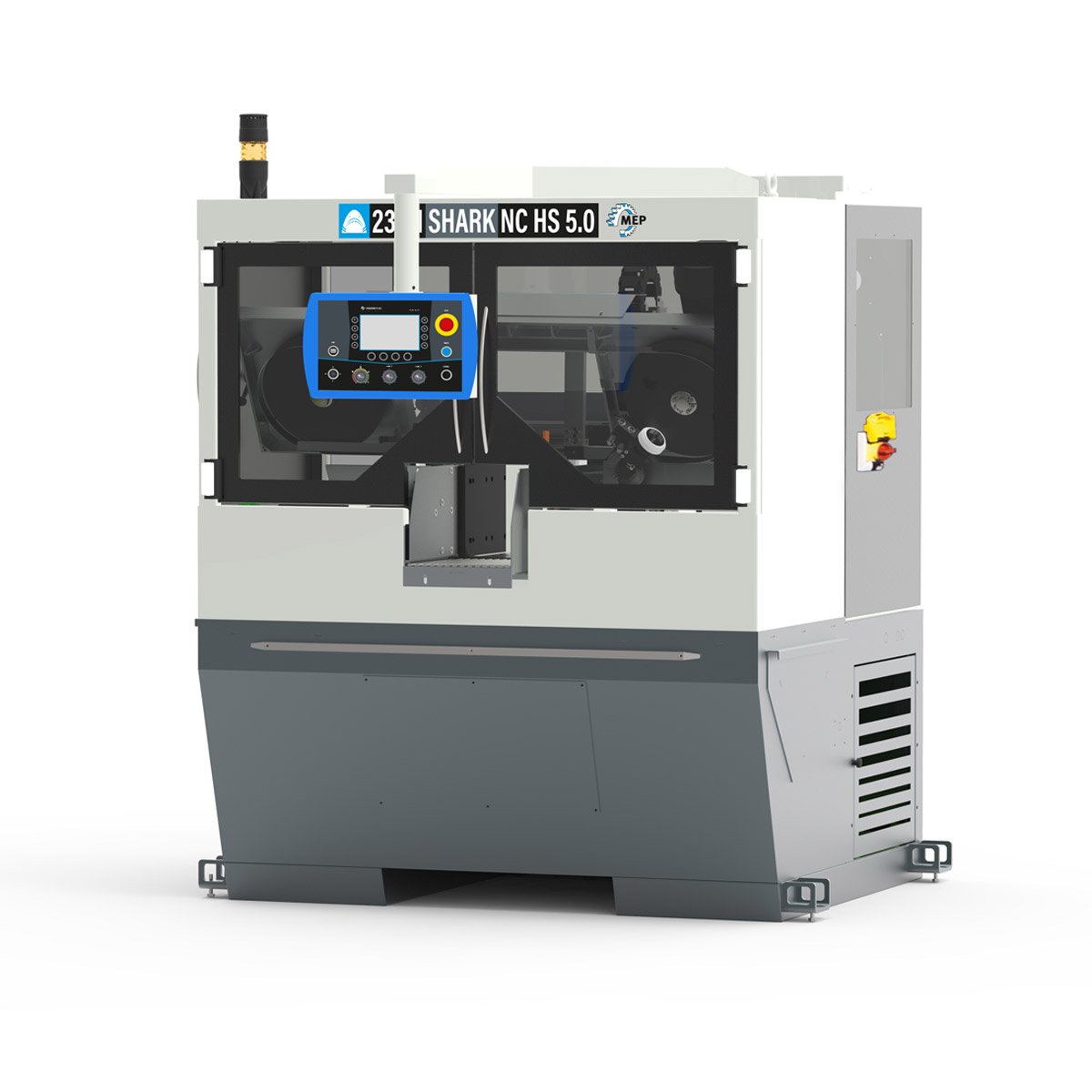

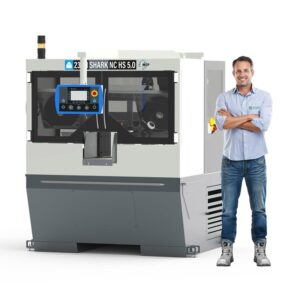

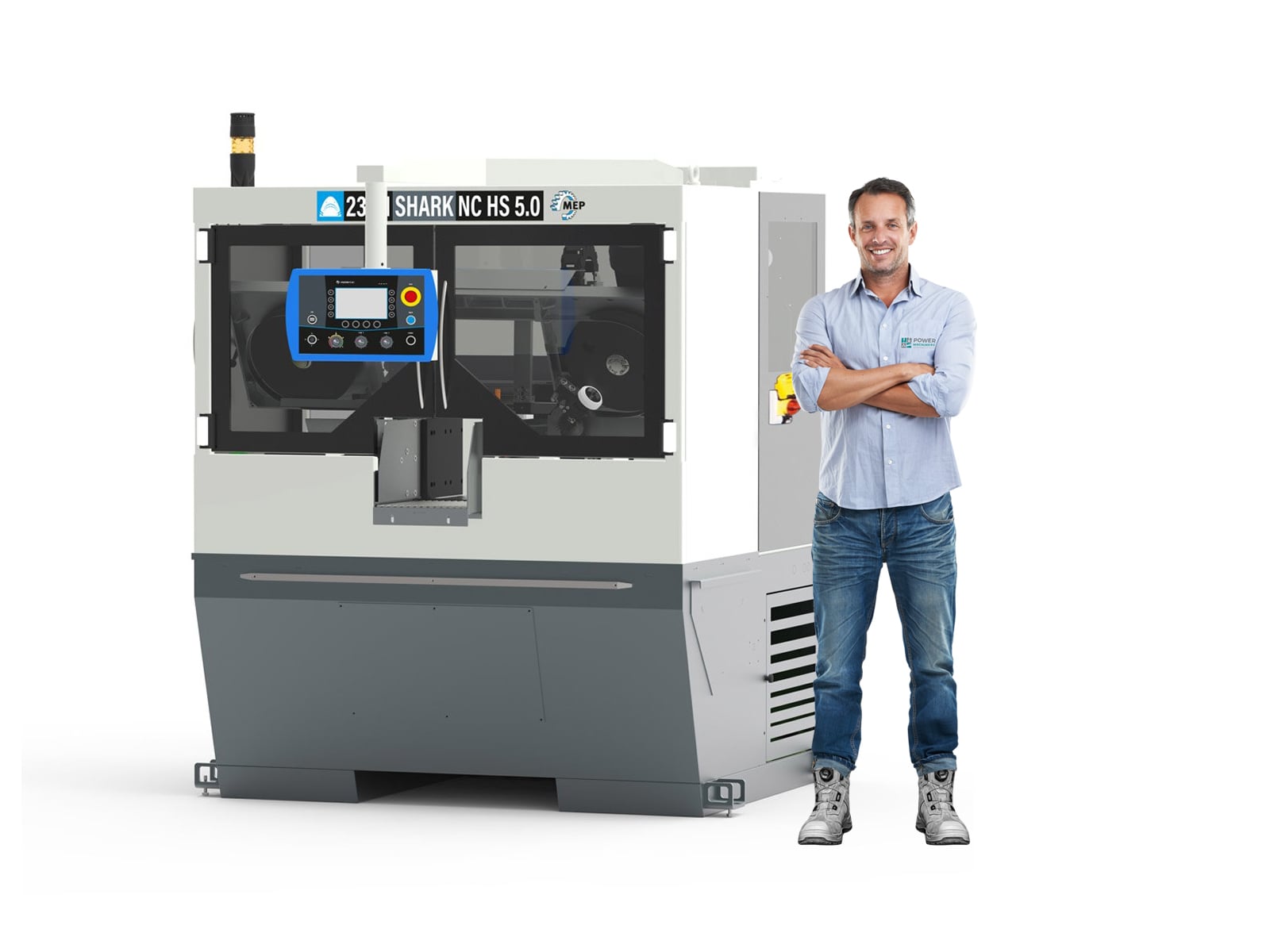

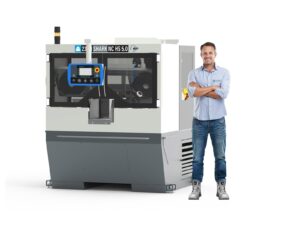

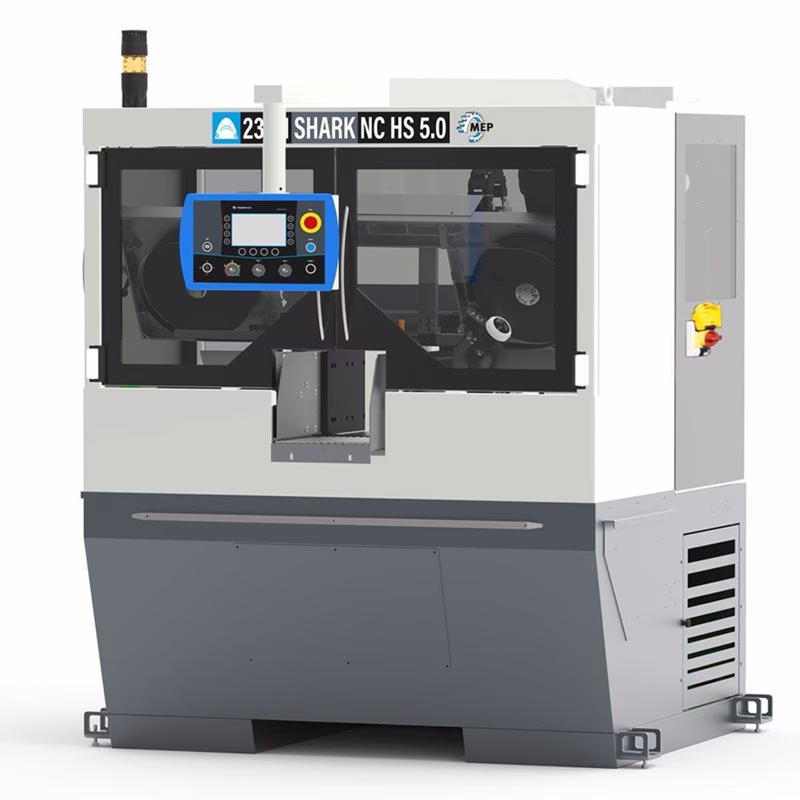

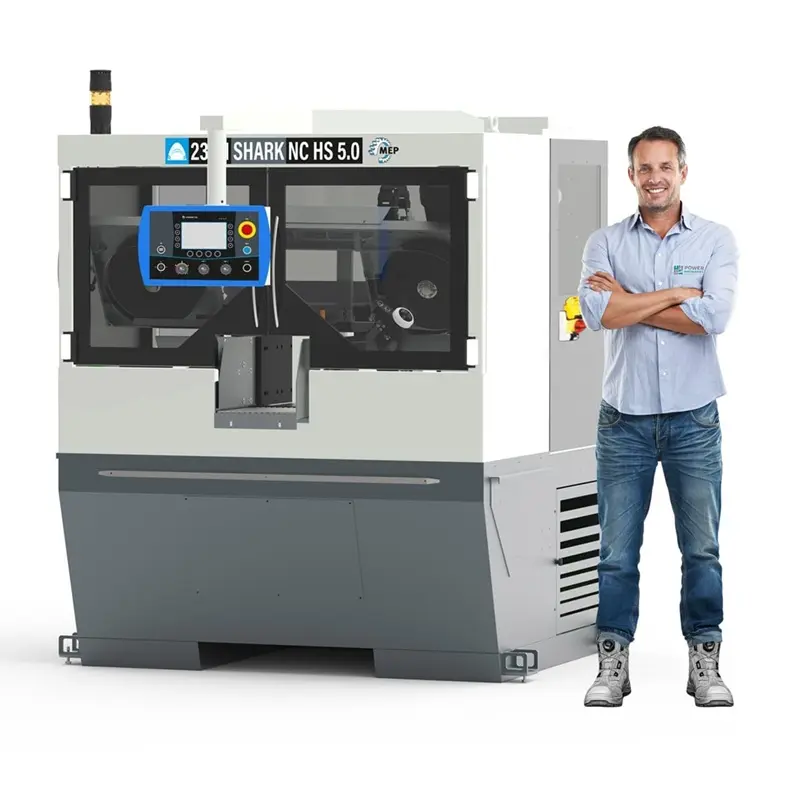

MEP Shark 230-1NC CNC Automatic Bandsaw

Capacity – 230 x 230mm

Manufactured in Italy, the Shark 230-1 NC 5.0 is the most powerful and robust CNC automatic bandsaw in its class.

A “Full In Box” design, with Dual Column cast iron construction, it is particularly well suited to solid bar works.

This model is extremely robust and capable of continuous cutting at full capacity of 230mm solid bar. It can also automatically feed material until there is only a 70mm remnant remaining.

Operation is by a 180mm touch screen control. It is simple to use and program with a Windows CE based CNC that manages all cutting parameters and functions in real-time. Cutting head and feeding vice can also be positioned manually by the joystick control.

Bar feed is by ballscrew and stepper motor. You can program different lengths and batch numbers on one length of material. Band speed is infinitely variable electronically from 15 to 100m/min.

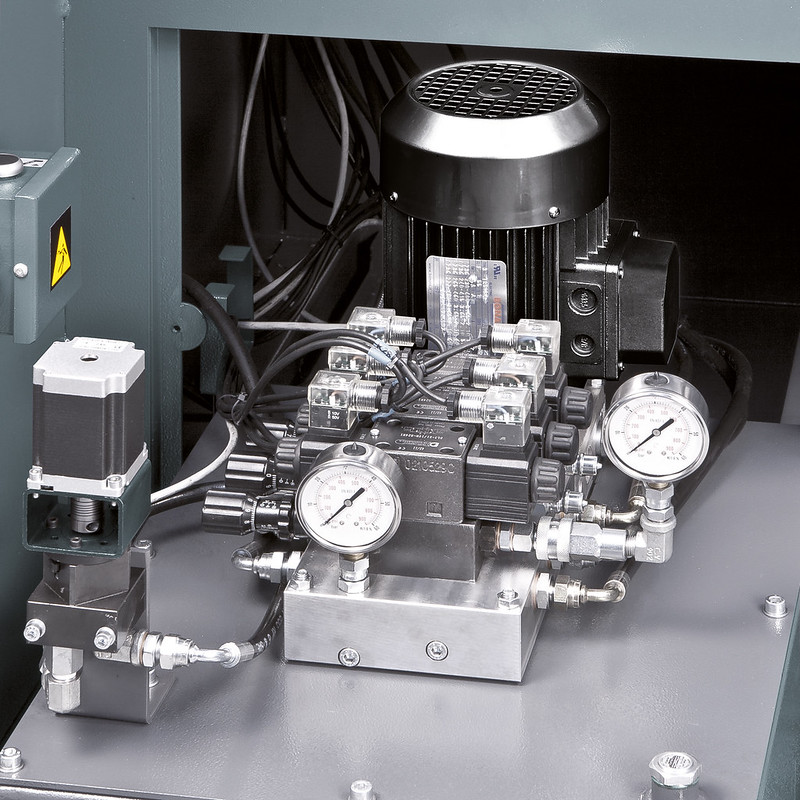

Bundle cutting is possible with overhead hydraulic vices with no loss in capacity.

How can this CNC Automatic Bandsaw help your business?

Contact us to discuss your business’s needs and to learn how the 230-1NC can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Unique Features

• This is the ideal machine for a machine shop where you need to repetitive cut solid bars.

• Twin column cast iron design ensures fast, accurate, vibration-free cutting.

• In-Box design provides the best possible safety and cleanliness for your workshop.

• The saw will keep cutting in automatically until you only have a 60mm remnant piece left. This is considerably shorter than most other machines.

• The 178mm Touch Screen control is effortless to use, and you can program different lengths and number of pieces on the one bar, optimizing material.

• The structure in sturdy G25 Cast Iron absorbs vibrations and provides excellent stability for optimal accuracy and blade life.

• The control panel allows for easy viewing of machine operations in real-time.

• Infinitely adjustable cutting speed from 15 to 100 m/min to perfectly match your cutting requirements.

• Automatic acquisition of the actual starting point of the cut

• It is easy to adjust the cutting head and feeding vice position with the joystick

• Variable pressure so you can reduce as required for thin wall tube.

• Feeding length up to 500 mm in a single stroke driven by a stepper motor and ball screw assembly, it will automatically calculate number of strokes required for any programmed length.

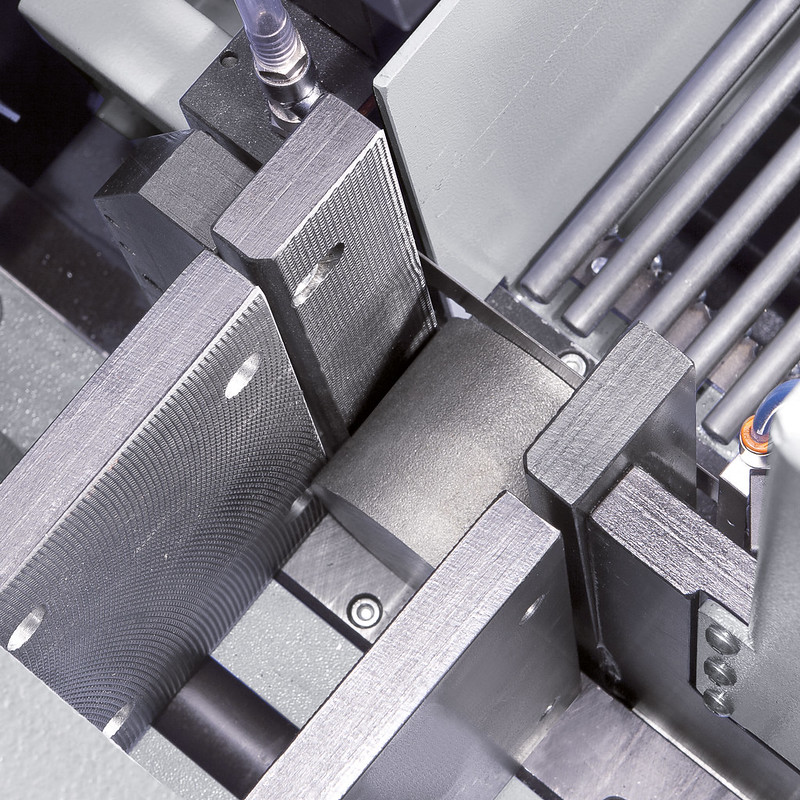

• The feeder vice has sideways movement for self-adjustment in case your material is not straight.

• Automatic adjustment of the front blade guide to match material width.

• Blade brush is driven off the band wheel.

• Sound and flashing indicator to let the operator know when the cycle is finished or in case of problems.
