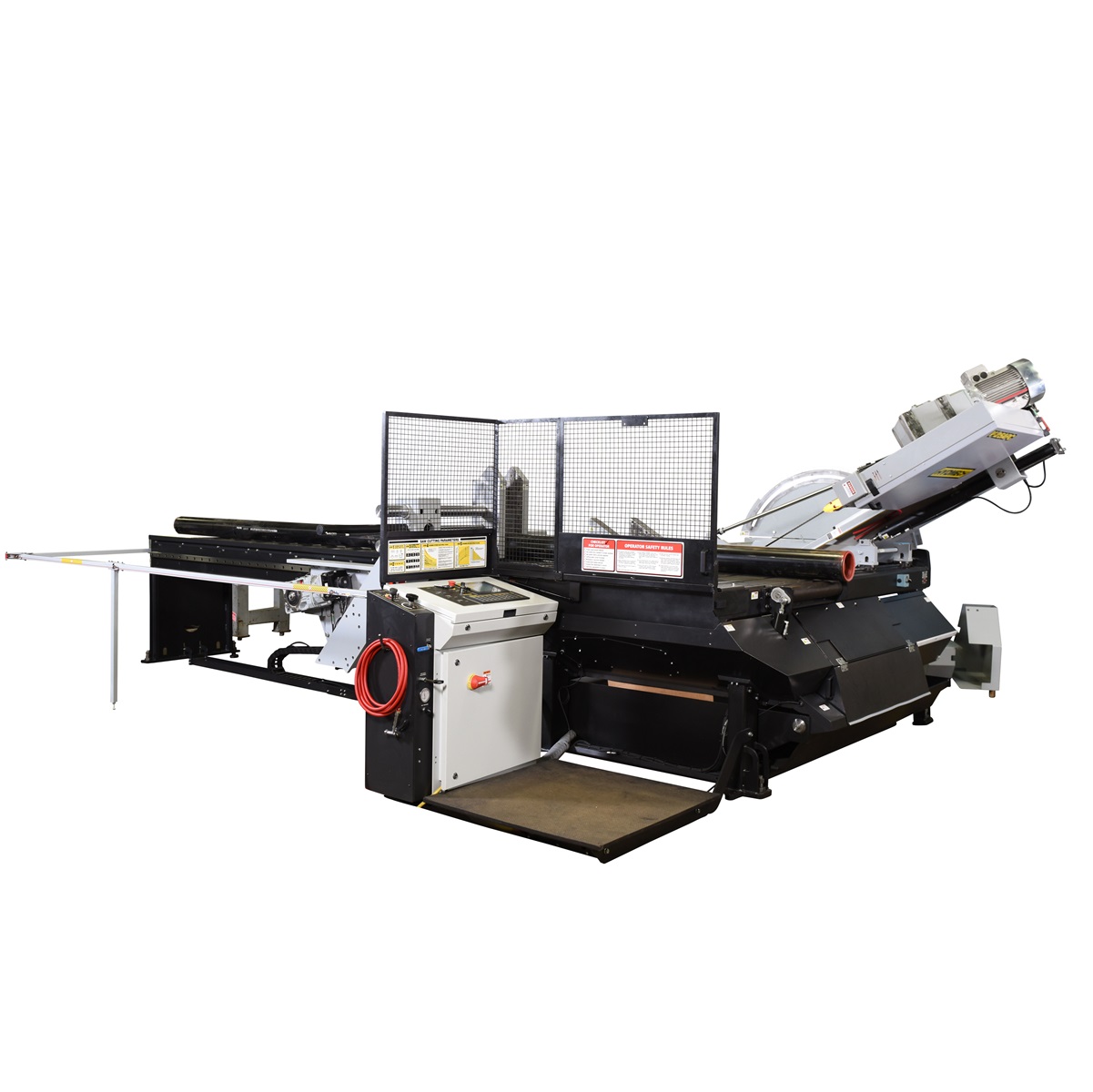

Hydmech V25APC CNC Vertical Bandsaw

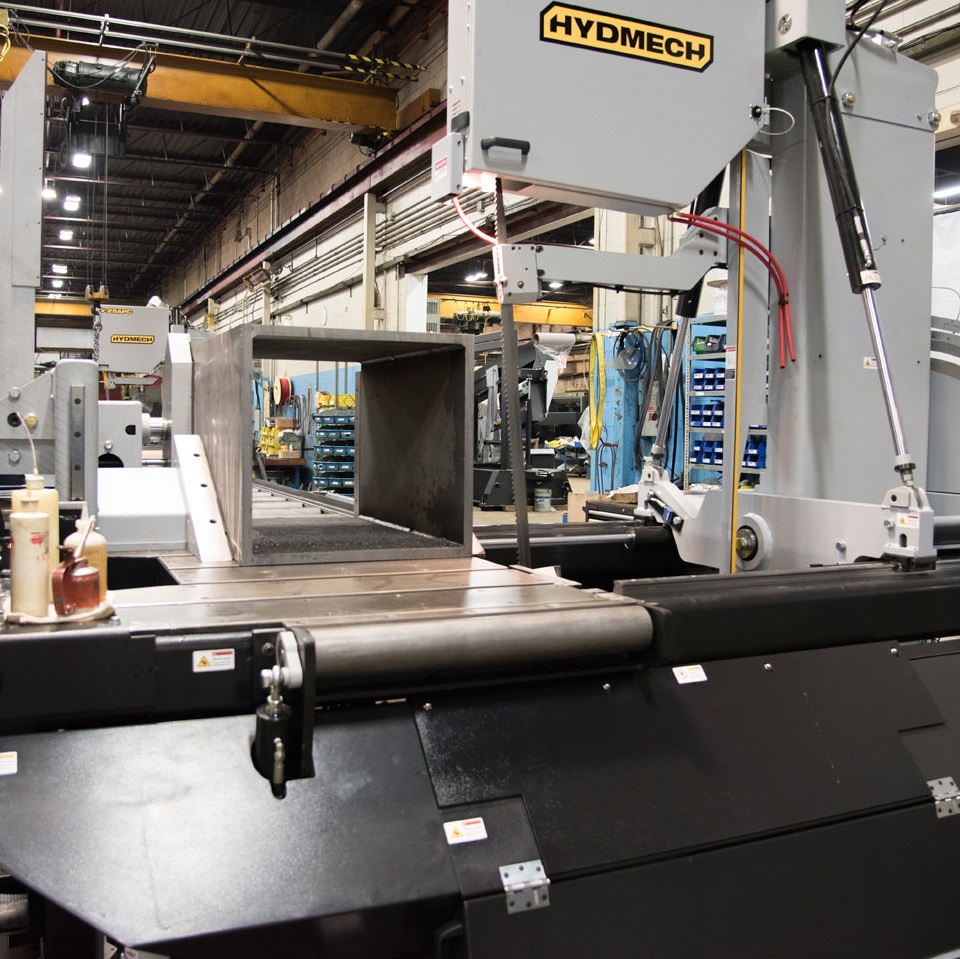

Hydmech V25APC Vertical CNC Bandsaw in action

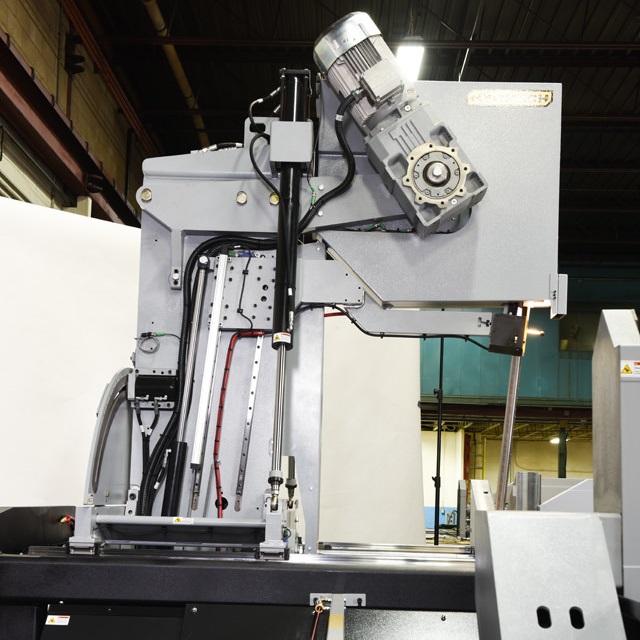

V25APC Vertical CNC Bandsaw - 10 Horsepower Blade Drive

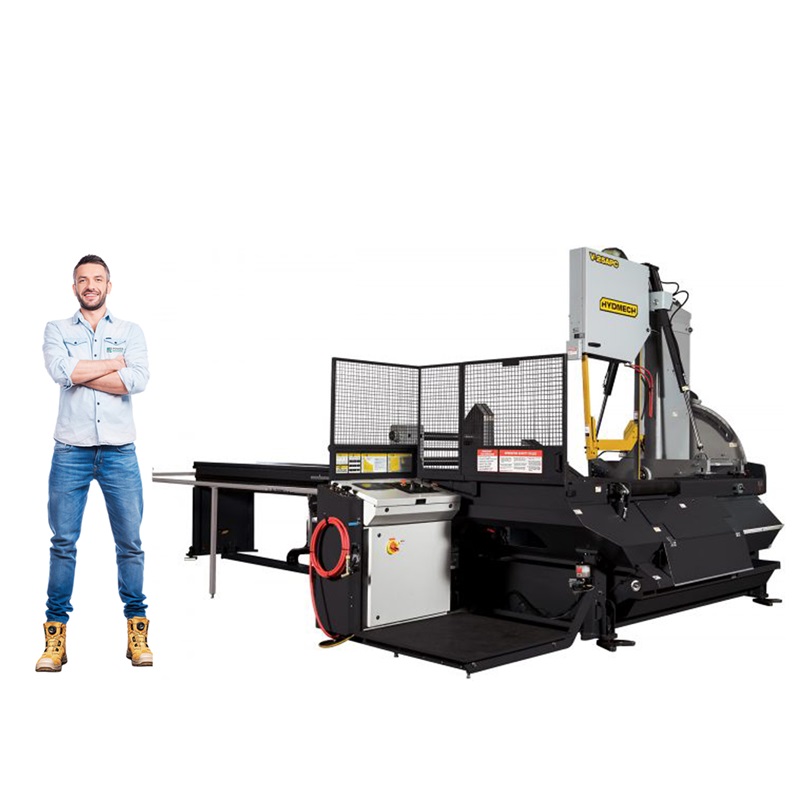

Hydmech V25APC Vertical CNC Bandsaw

Capacity – 762 x 635mm



Manufactured in Canada, the Hydmech V25APC ideal for cutting larger beams, structural steel, and bundles of square tubing.

This CNC vertical bandsaw can mitre both left and right to 60° even when being used in automatic mode. The mitre angle is a programmed function.

A 3 degree fixed canted head allows for more efficient cutting and improved blade life.

The saw includes four full stroking hydraulic vices: the shuttle feed vice, vices either side of the blade and a squaring vice. The squaring vice is very useful for ensuring accuracy on long heavy lengths of material.

It has a cast-iron feed shuttle with 1000mm travel in a single stroke and automatic multi indexing if cutting length requires. It has a cutting chamber that separates the material from the cut part.

The V25APC uses a Mitsubishi PLC (Programmable Logic Controller) which allows up programming for up to 99 jobs with 5 in a queue.

Standard equipment includes chip conveyor, laser line and low voltage lamp as well as variable vice pressure and on-demand hydraulic system to conserve energy.



How can the Hydmech V25APC help your business?

Contact us to discuss your business’s needs and to learn how the V25APC can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Technical Information

Unique Features

• Shuttle features automatic multi-indexing up to 1500mm (3000mm) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.

• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

• 6° canted head allows for efficient cutting and improved blade life

• 1524mm bar feed, left side

• Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.

• Hydraulically powered, programmable guide arm attached

• Hydraulic head tilt

• Cast iron band wheels

• Two full stroking hydraulic vices

• 3 HP hydraulic pump provides system pressure

• 10 HP VFD. True direct blade drive

• Hydraulic chip conveyor efficiently removes chips from saw base

• Replaceable blade brush

• Robust steel base

• Out of stock switch

• Blade chamber separates material from cut part

• Blade breakage switch

• Easy access electrical and hydraulics

• Variable vice pressure

• Hydraulic band tensioning with digital readout

• Replaceable carbide guide inserts

• Pop-up feed roller – one opposite bar feed

• Safety door interlocks

• Flood coolant with wash down hose

• Laser light

• Work light

See the V25 APC Vertical CNC Bandsaw in action
