Hydmech S23A Automatic CNC Bandsaw

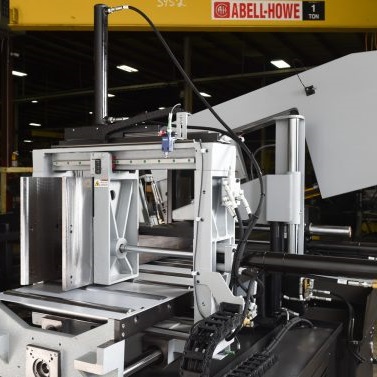

Hydmech S23 a Automatic CNC Bandsaw Built In Roller Table

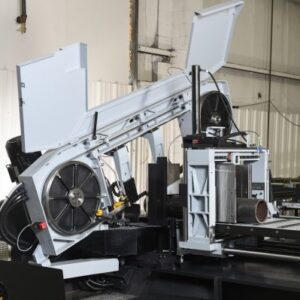

Hydmech S23a Automatic CNC Bandsaw Ball Screw Shuttle

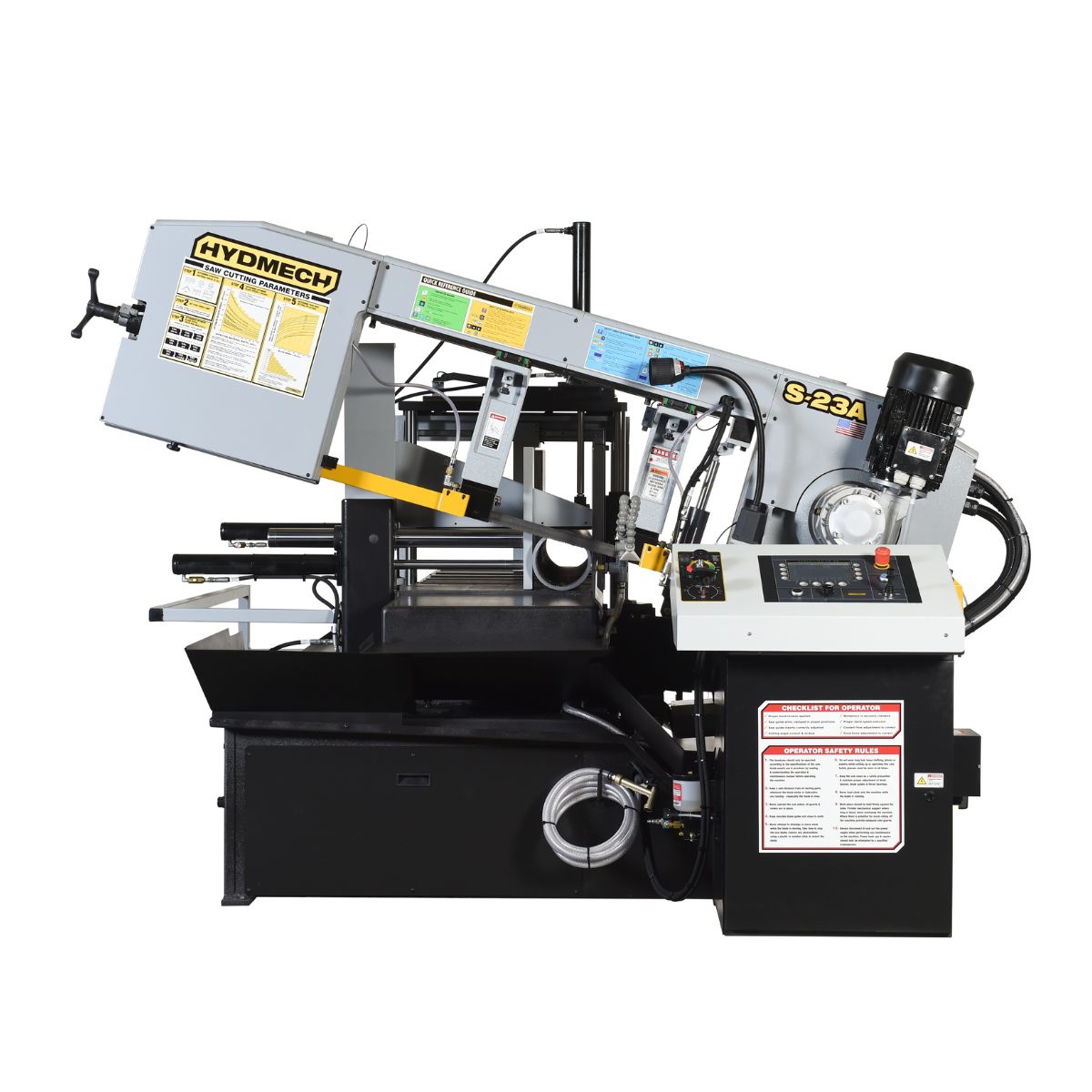

Hydmech S23A Automatic CNC Bandsaw

Capacity – 330 x 457mm



Manufactured in the USA, the Hydmech S23A is a scissor style automatic CNC bandsaw. The S-23A can mitre to 60° one way with a balanced and smooth manual swing function.

The bow and band wheels are constructed from cast iron to reduce vibration and provide the ultimate stability for high band tension and straight cutting.

It has a cast-iron feed shuttle with 720mm travel in a single stroke and automatic multi indexing if cutting length requires.

The Hydmech S23 A uses the MEP Touch Screen NC Control programmable up to 100 jobs with 20 in a queue.

The operator can control the hydraulic feed rate and feed force independently to ensure the operator can achieve optimum cutting results.

Standard equipment includes laser line and low voltage lamp as well as variable vice pressure and on-demand hydraulic system to conserve energy. We would typically stock this model with the optional hydraulic full capacity bundle clamping fitted.

The Hydmech S23 A offers excellent mitre cutting capability for medium duty applications.

How can this Automatic CNC Bandsaw help your business?

Contact us to discuss your business’s needs and to learn how the S23A can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Technical Information

Unique Features

• Easy swing, heavy-duty, cast iron saw head that can swing up to 60 degrees one direction

• Cast iron shuttle features automatic multi-indexing up to 723 mm in a single stroke. Powered by ball screw and stepper motor

• 488 mm out feed table and 1149 mm infeed table

• 6.5 kW VFD. True direct blade drive – no belts/pulleys

• On-demand hydraulics save energy

• Full capacity, full stroking hydraulic vices

• Blade chamber pulls back material from cut part to extend blade life

• Cast iron band wheels

• Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue

• Replaceable blade brush

• Robust steel base

• Easy to read angle scale with angle locking mechanism

• Cast iron blade guide arms mounted on linear rails is adjustable for proper spacing.

• Easy access electrical panel

• Out of stock switch

• Blade breakage switch

• Mechanical band tensioning with digital readout

• Hydraulic positive down feed of sawing head

• Pre-set, replaceable carbide guide inserts

• Safety door interlocks

• Flood coolant with wash down hose

• Laser light

• Work light

• Variable vice pressure

See the S23A Automatic CNC Bandsaw in action
