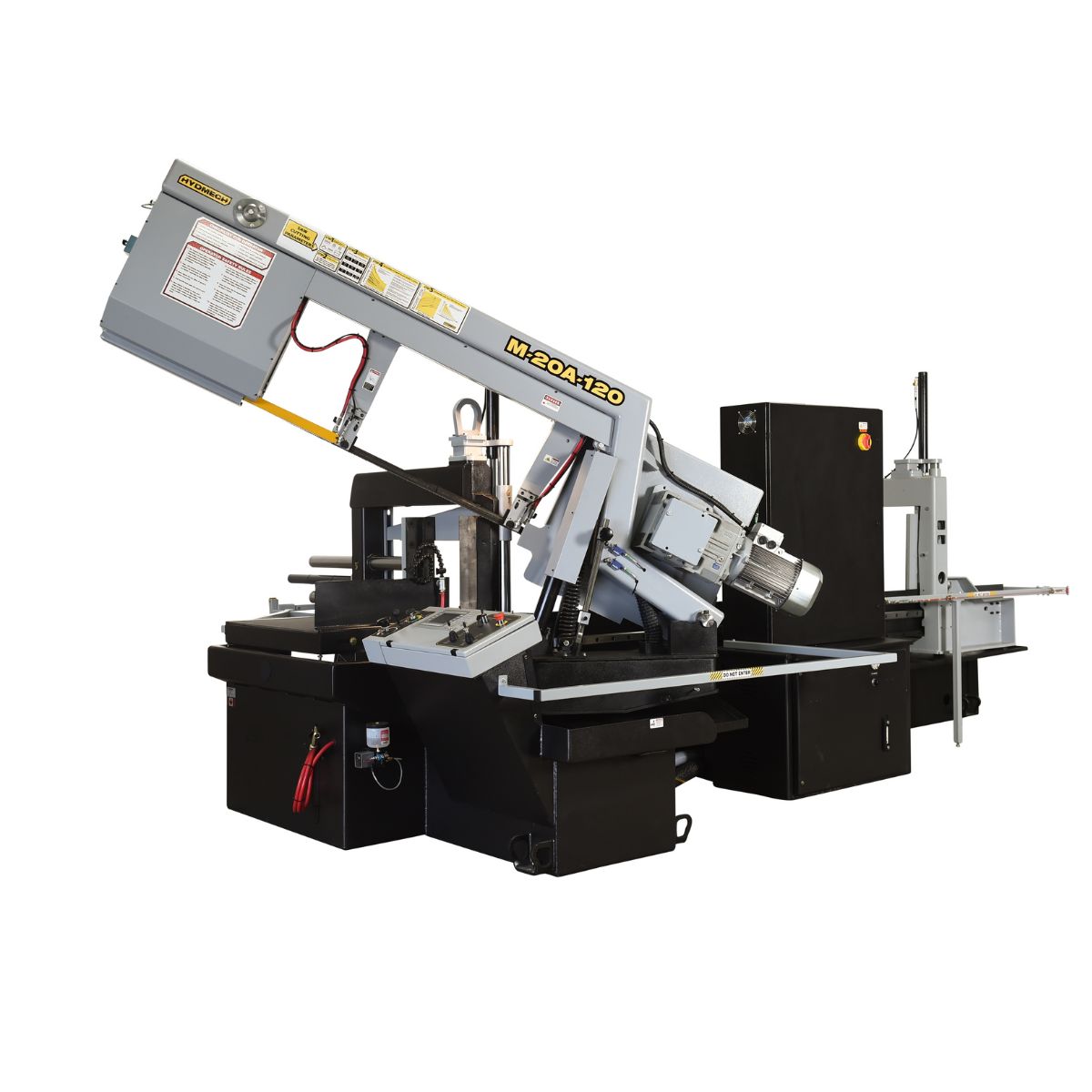

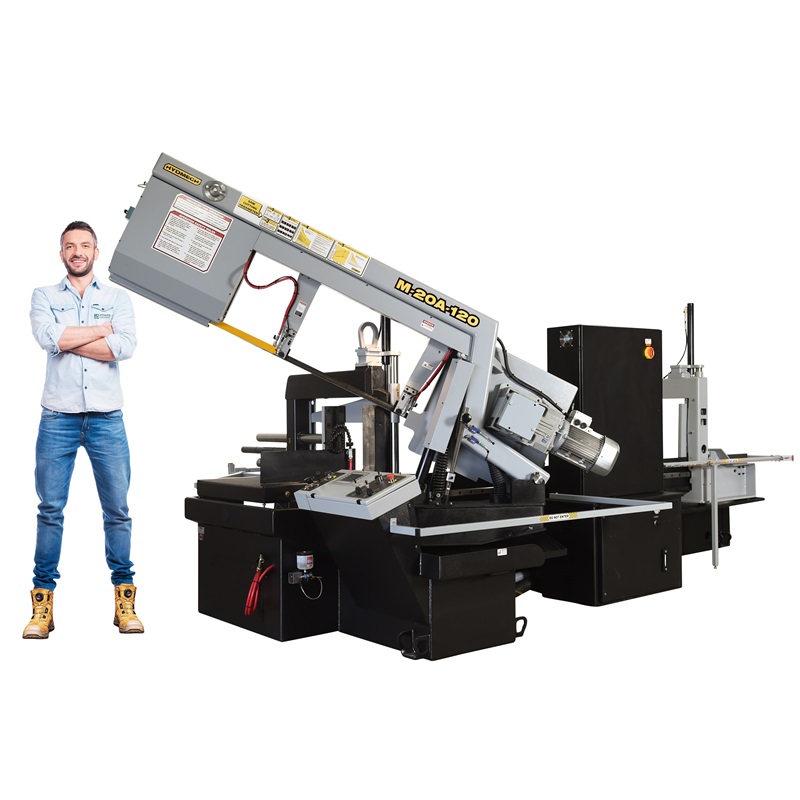

How can the Hydmech M20A 120 help your business?
Contact us to discuss your business’s needs and to learn how the M20A 120A can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.
Unique Features
• Automatic programmable mitring with “go to” angle functionality
• Full capacity hydraulic overhead bundling
• 216mm Mitsubishi FX5U PLC color touchscreen controller. No flipping from screen to screen; the control is interactive with messages for the operator reduces the learning curve. User-Friendly Graphical Icon programming for miter cutting, 1000 jobs, 20 jobs in the queue

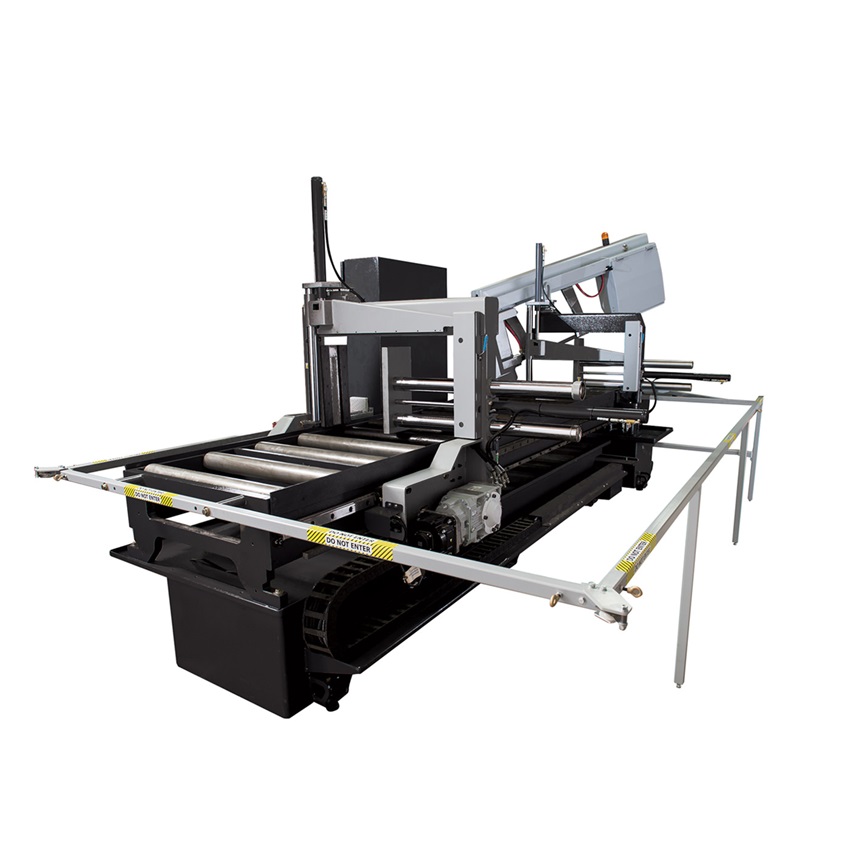

• 3 m bar feed
• Steel guide arms mounted on linear rails. The hydraulically powered idler side guide arm is adjustable for proper spacing.
• Full capacity, full stroking hydraulic vices
• 7.5 kW VFD. True direct blade drive – no belts/pulleys
• Hydraulic band tensioning
• Hydraulic carbide guide tensioning
• Replaceable blade brush
• Robust steel base
• Hydraulic positive down feed
• Blade chamber separates material from cut part

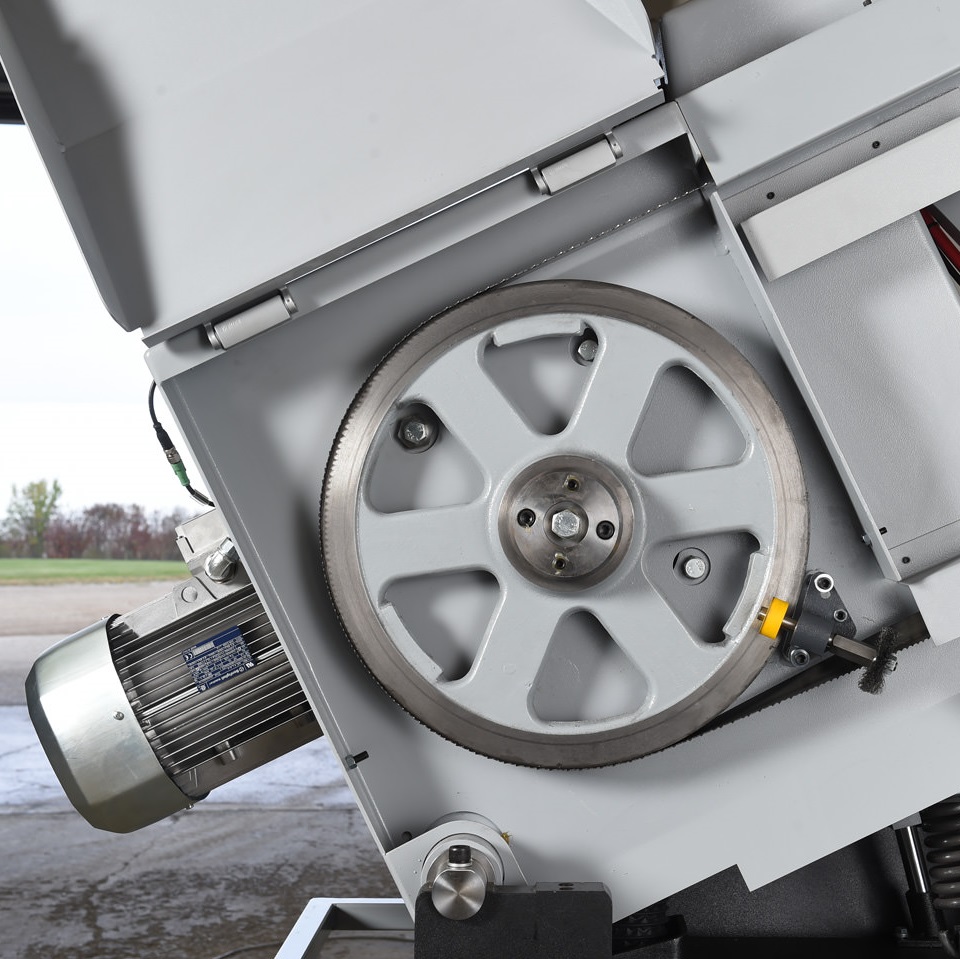

• Cast iron band wheels
• Blade breakage switch
• Hardened replaceable wear plates on material vices
• Variable vice pressure
• Safety door interlocks
• Flood coolant with wash wash-down hose
• Automatic chip removal auger
• Easy access to electrical panel and hydraulics
• Laser light
• Work light
• Out of stock switch
See the M20A 120 in action
