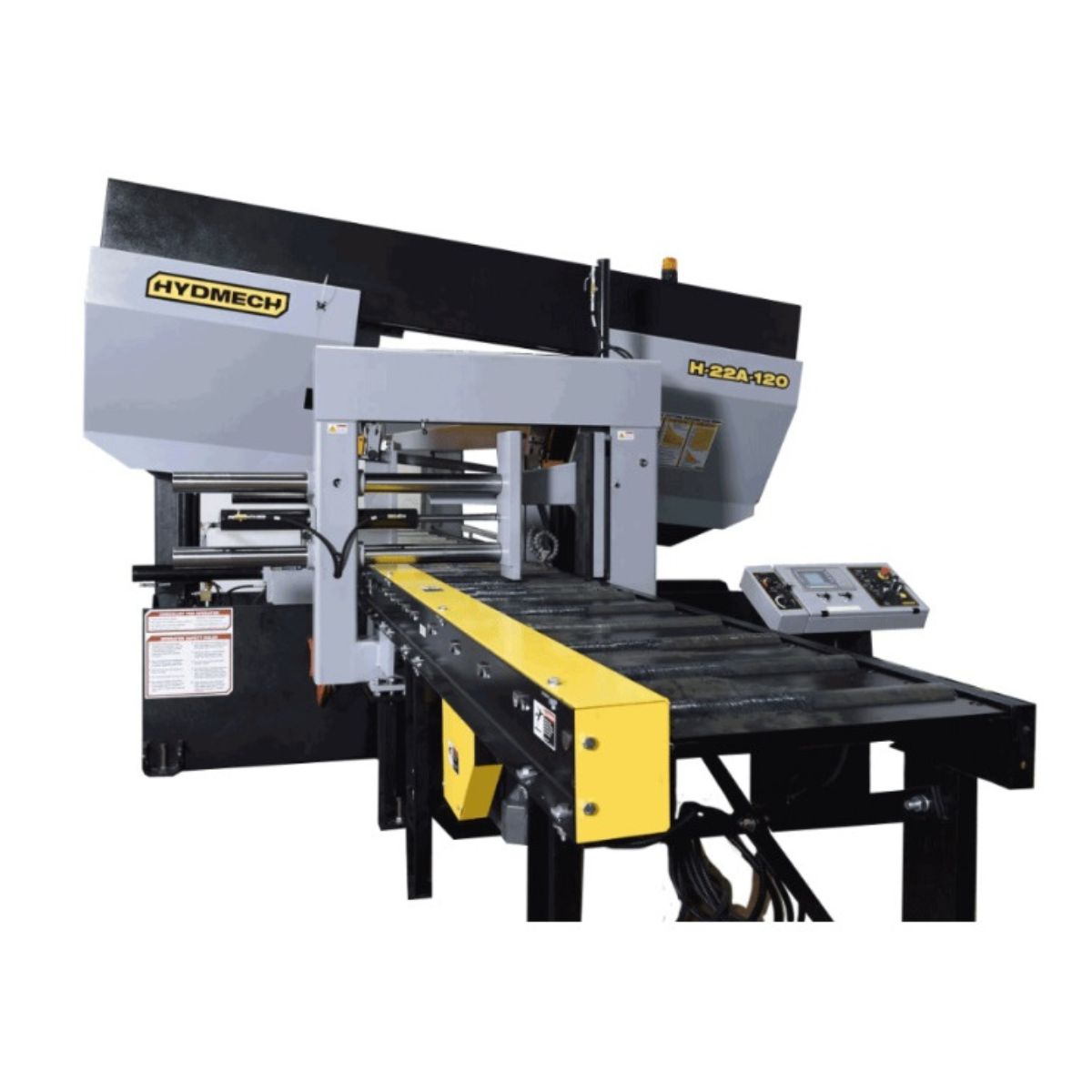

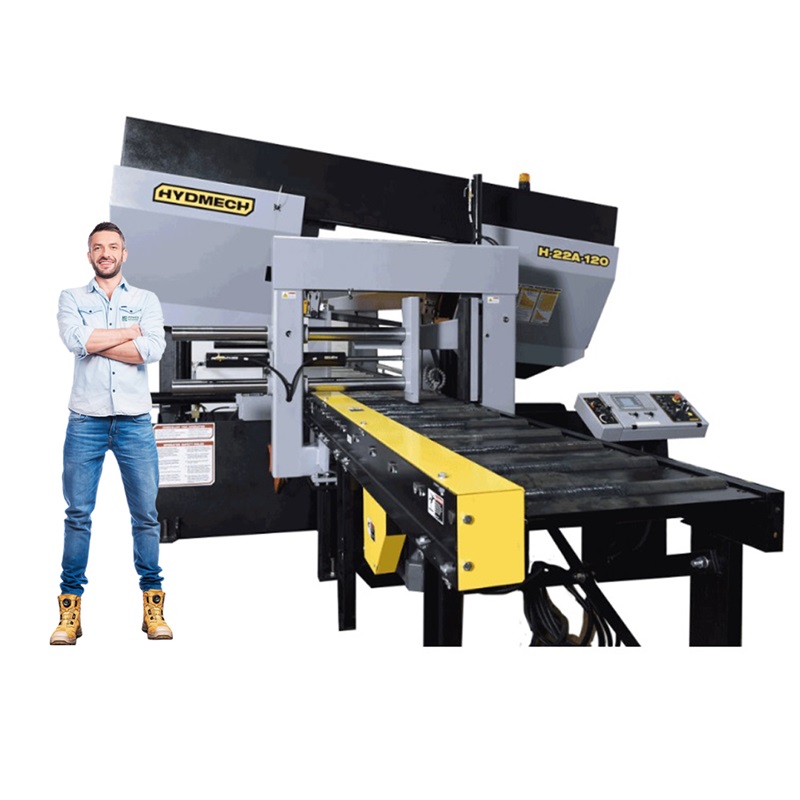

Hydmech H22A-120 Horizontal Double Column Bandsaw

How can the Hydmech H22A-120 help your business?

Contact us to discuss your business’s needs and to learn how the H22A-120 can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Unique Features

• Spilt front vice

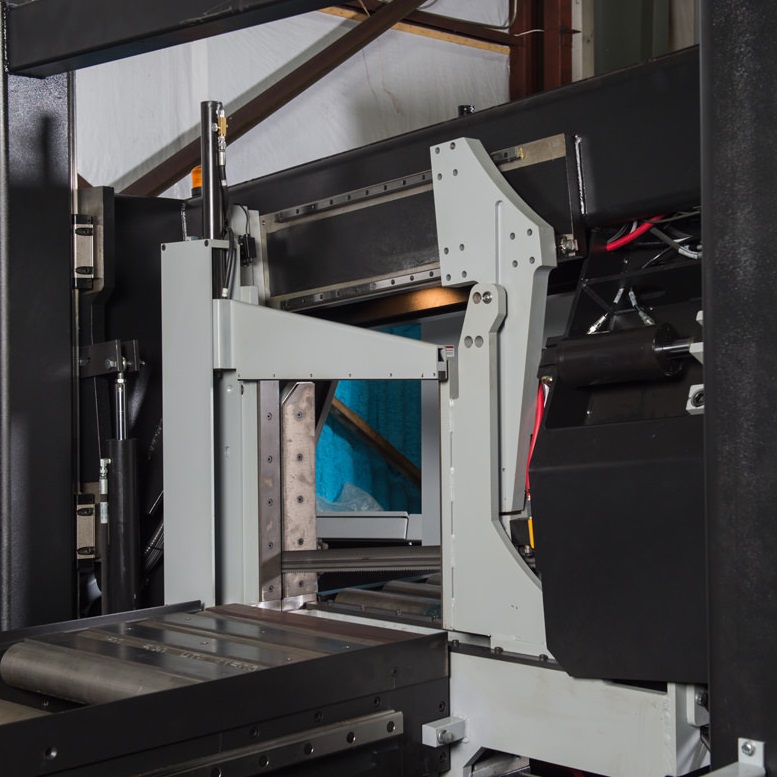

• Full capacity hydraulic overhead bundling
• Full capacity, full stroking hydraulic vices

• 3 m bar feed

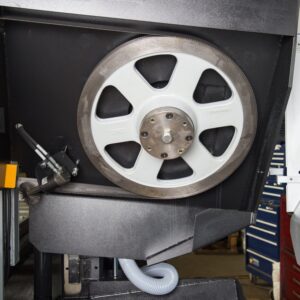

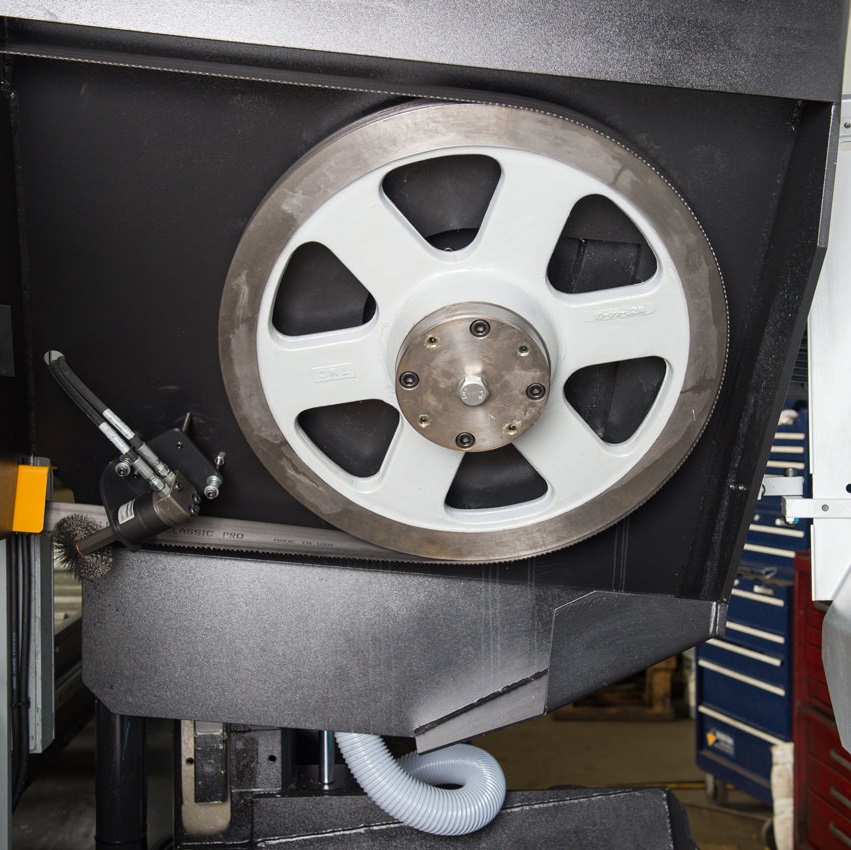

• Cast iron band wheels

• Shuttle features automatic multi-indexing up to 3048 mm in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.

• Steel guide arms. The idler side guide arm is mechanically connected to the front vice moveable jaw for proper guide arm spacing.

• 7.5 kW VFD. True direct blade drive – no belts/pulleys

• Hydraulic-positive down feed

• High-resolution feed rate valve allows for constant feed rate when cutting special alloys

• Flood coolant with a wash-down hose

• Blade chamber separates material from the cut part

• Hydraulic band tensioning with digital readout

• 178 mm Mitsubishi FX5U PLC color touchscreen controller. No flipping from screen to screen, the control is interactive with messages for the operator reduces the learning curve. Programmable head up position, Built-in machine diagnostics on the display screen, Simple Software updates, 999 jobs, ten jobs in the queue.

• Replaceable blade brush

• Robust steel base

• Automatic chip removal auger

• Easy access to electrical panel and hydraulics

• Blade breakage switch

• Hydraulic carbide guide tensioning

• Hardened, replaceable wear plates

• Safety door interlocks

• Laser light

• Work light

• Out of stock switch

• Variable vice pressure
