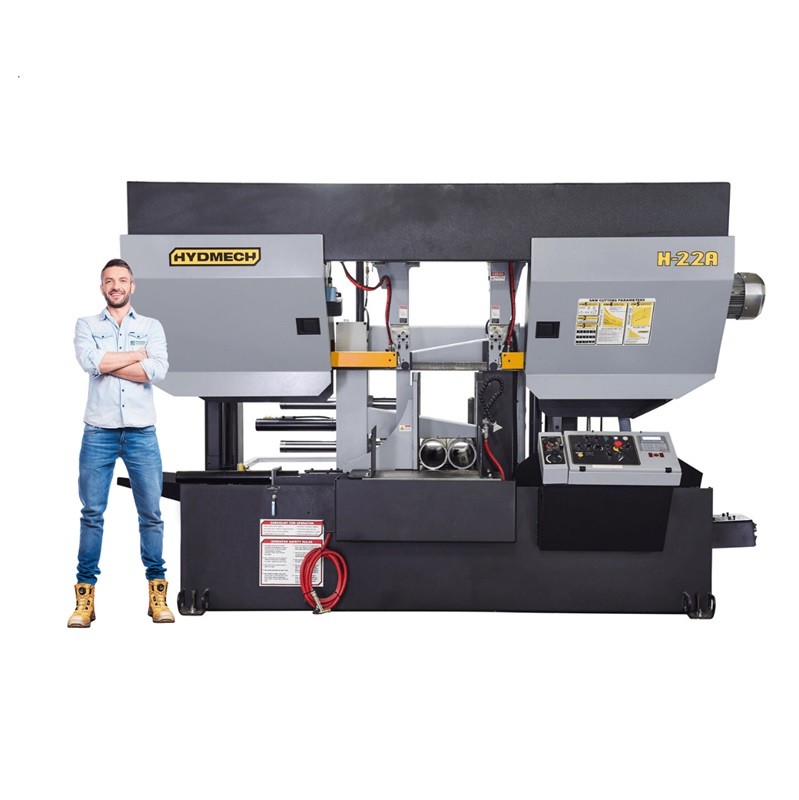

Hydmech-H22A Horizontal Automatic Bandsaw

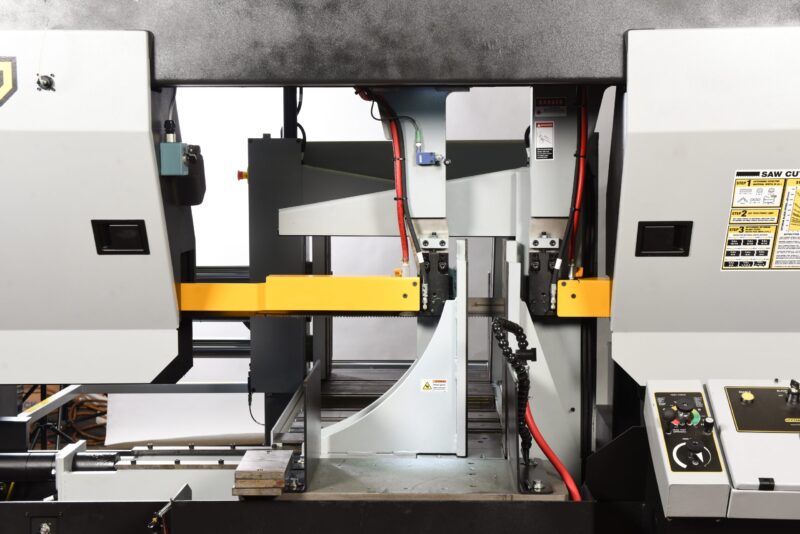

Hydmech H22A Horizontal Automatic Bandsaw Close Up View

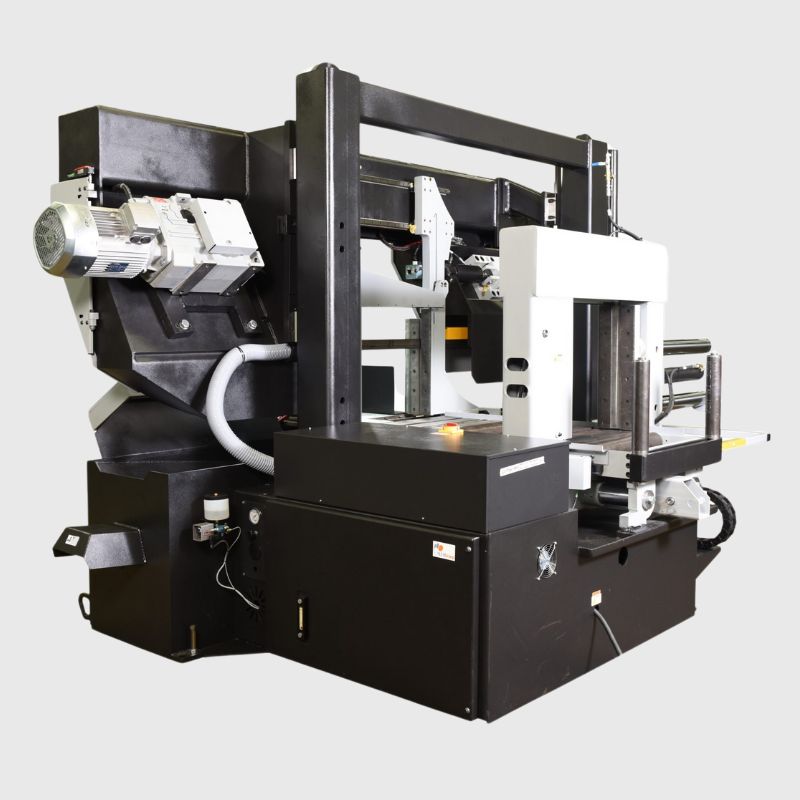

Hydmech H22A Horizontal Automatic Bandsaw Side View

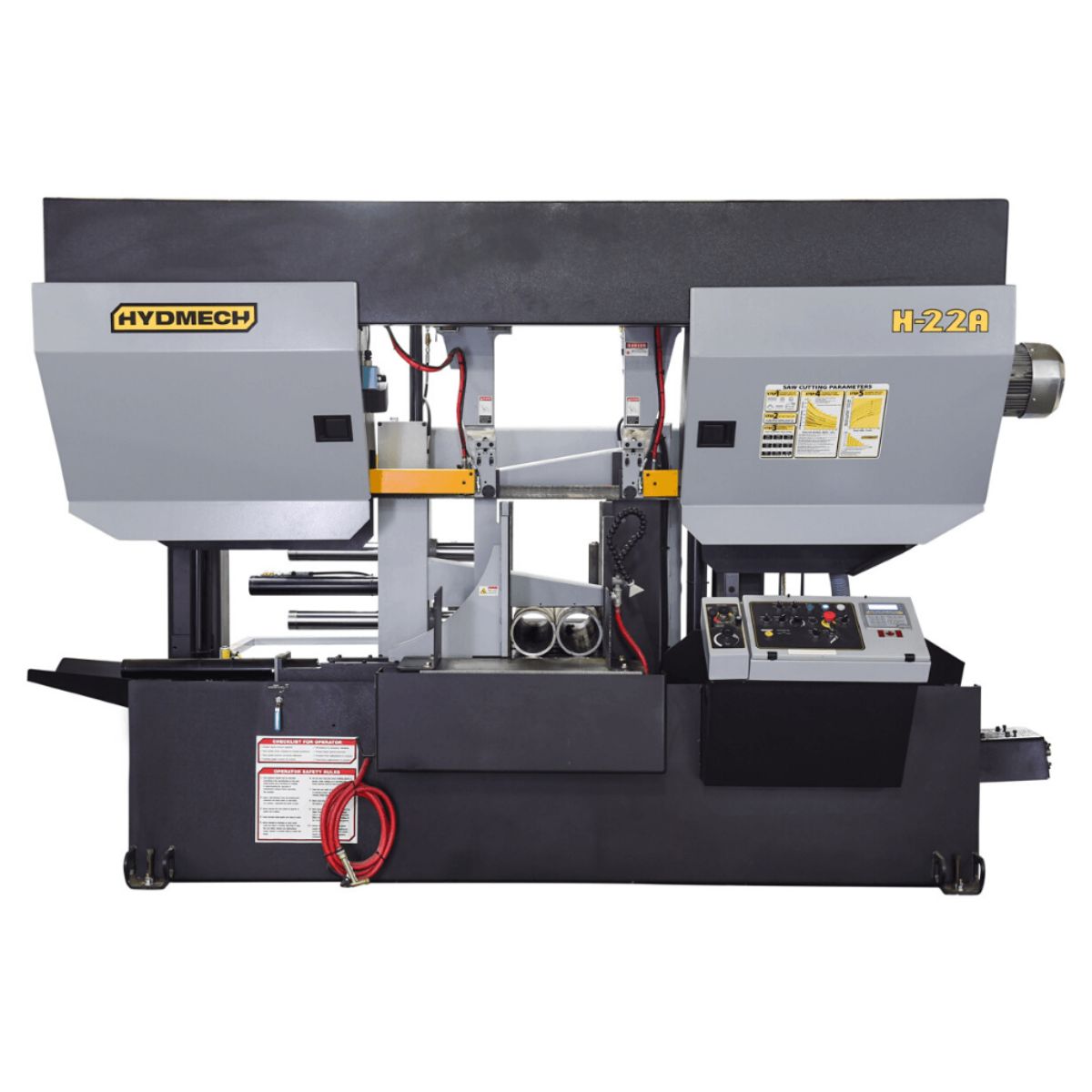

Hydmech H22A Horizontal Automatic Bandsaw

Capacity – 558 x 558mm



The Hydmech H-22A Horizontal Automatic Bandsaw provides accurate 90° metal cutting for heavy duty applications.

This Canadian made horizontal automatic bandsaw is fast, with its high speed shuttle feed indexing up to 864mm in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing, allows for more efficient cutting and improved blade life. This results in higher productivity and lower costs.

Featuring a 10 HP motor and 50mm blade, the H-22A is the reliable choice for all your heavy-duty horizontal metal cutting applications.



How can the Hydmech H22A Automatic Bandsaw help your business?

Contact us to discuss your business’s needs and to learn how the H22A horizontal automatic bandsaw can revolutionise your workplace. Call us on (02) 8445 8555 or email info@powermachinery.com.au.

Technical Information

Unique Features

• One piece design – no alignment necessary

• Spilt front vice allows for short remnant length

• Shuttle features automatic multi-indexing up to 860mm in a single stroke with automatic kerf compensation (also available in 3000mm version)

• Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times

• Hydraulic positive down feed

• Blade chamber separates material from cut part

• 10 HP VFD. True direct blade drive – no belts/pulleys, full capacity, full stroking hydraulic vices

• High resolution feed rate valve allows for constant feed rate when cutting special alloys

• Cast iron band wheels

• Automatic PLC control programmable up to 99 jobs with 5 in queue.

• Replaceable blade brush

• Robust steel base

• Automatic chip removal auger

• Out of stock switch

• Easy access electrical panel and hydraulics

• Blade breakage switch

• Hydraulic band tensioning with digital readout

• Hydraulic carbide guide tensioning

• Hardened, replaceable wear plates

• Safety door interlocks

• Flood coolant with wash down hose

• Work light

• Variable vice pressure

See the H22A Horizontal Automatic Bandsaw in action
