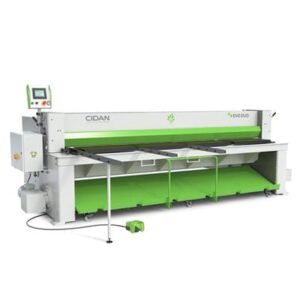

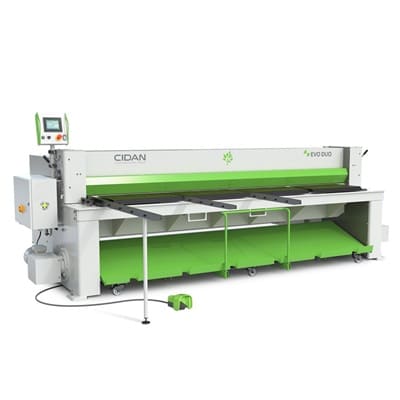

Cidan Evo Duo Sheet Metal Shear

Capacity 0.5mm – 4.0mm sheet thickness

Length Option: 3200 mm and 4100 mm

• Double synchronized motors that distribute power evenly throughout the sheet metal shear machine.
• Wide working area 0.5–4 mm (Evo Duo 32) with perfect results every time.
• Clear and easy blade gap adjustment.
• Flexible table that can be configured exactly to your needs.

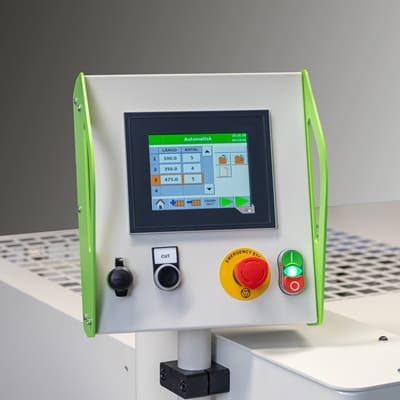

• CutLink Control– simple, easy and precise control system.
• The distance between the rear of the hold down beam and the cutting line is only 34 mm for minimum waste.
• Pneumatic hold down beam is standard and gives excellent results even with sensitive materials.
• The motorised back gauge (up to 1000 mm) is quickly positioned from the front of the machine with user-friendly control system CutLink.
• Low running costs, low noise output and low environmental impact.
